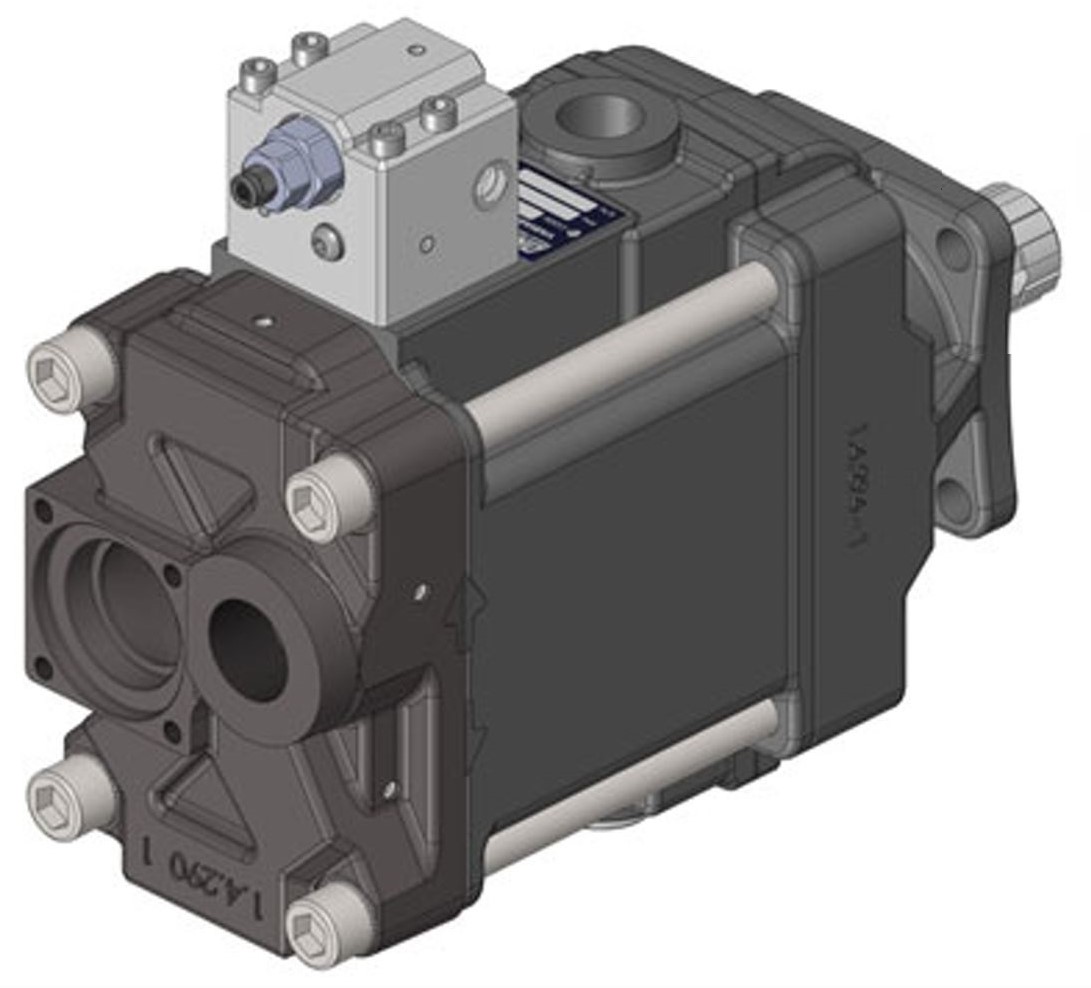

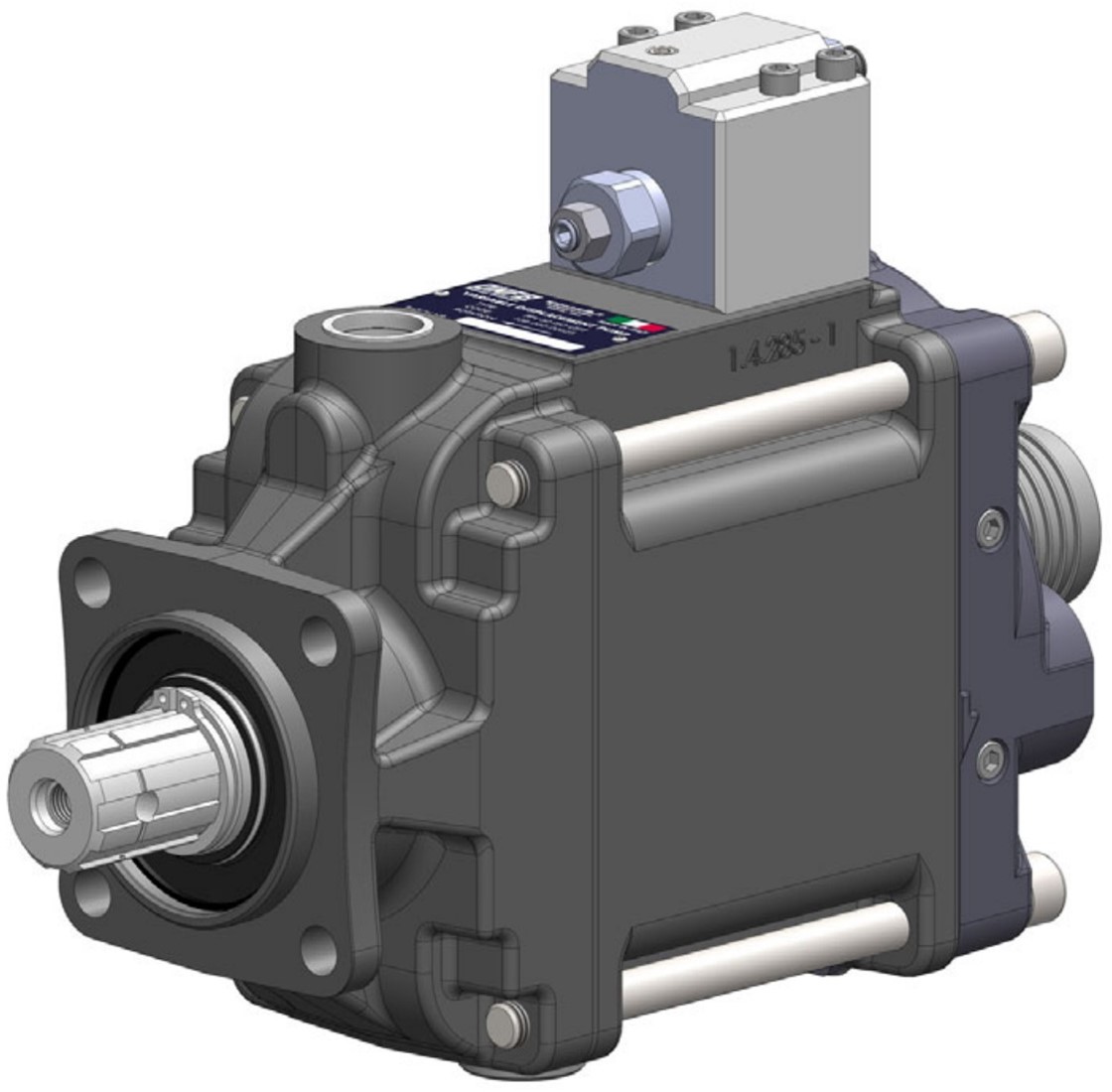

VARIABLE LS PLUNGER PUMP PPV-090-RIGHT

This OMFB axial plunger pump has a variable stroke volume of up to 90cc and is clockwise rotating.
The cylinders block; rotates together with the shaft forcing the plungers to rotate at the same speed of the shaft and make a circular path on the swash plate that causes the reciprocating movement. In this way, the pump is able to deliver from the maximum to zero flow rate.
The variation of the displacement is controlled by a regulator, which is fitted on the pump itself.
These pumps are designed to operate in open circuit.
They allow very quick reaction time and thanks to its compact size they can be coupled directly onto PTO’s of commercial vehicles.

Check all suction fittings for a suitable one for your application. Also, for the nipple on the pressure side, you can find a suitable one with the BSP adapters.
