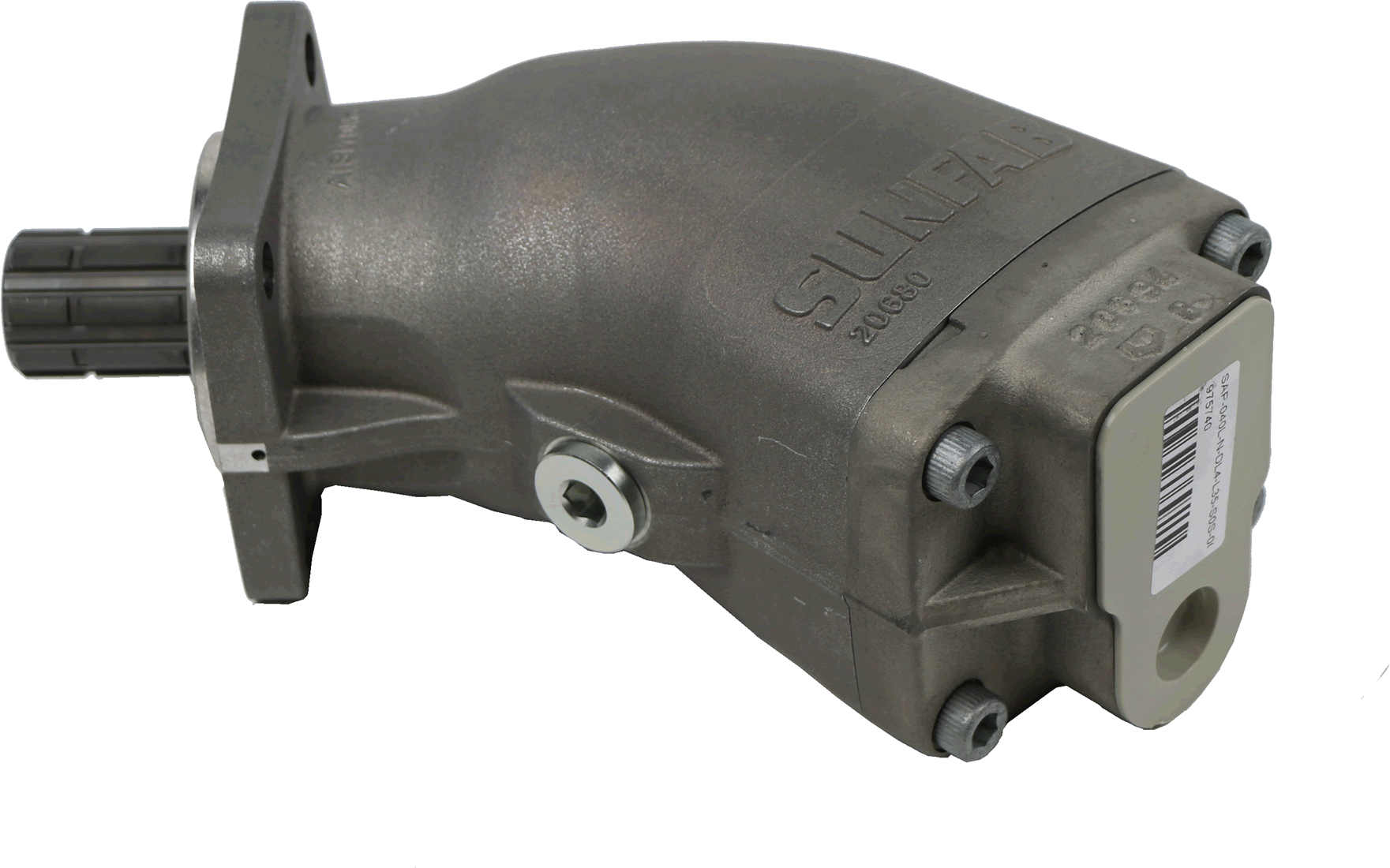

SUNFAB PLUNGER PUMP SAPT-130 L

Artikelcode: SF23220
€ 1.568,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

CONNECTION FOR SUCTION FITTING SUNFAB SC84-SC108 SCT130 1 1/4"

Soon on stock again

€ 84,00

Product code: SF50404

GASKET 4 HOLE ISO

In stock

€ 6,00

Product code: 50700100086

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO

In stock

€ 18,00

Product code: 11400000900

Product description and specifications
Documents
Accessories
Alternative products
Ask a Question

Product description

This small plunger pump from Sunfab with product code SF23220 is a left-turning pump designed for applications involving high pressure. The direction of rotation is easily adjustable, making this pump suitable for both PTO rotation directions. The suction fitting is included with this pump.
Another pressure nipple with a different thread is possible check the BSP adapters for a suitable one.
Another suction fitting is also possible check the appropriate suction fittings for this.
If more flow or a different connection flange is desired, please check our plunger pumps for an alternative.

Documents

Datasheet SAP/SAPT 012-130 DIN

Mounting instruction SAP/SAPT DIN

Exploded view SAPT 130 DIN

Reversing rotating direction

Specifications

Brand	Sunfab
Product code	SF23220
Displacement	130 cm³/rev
Rotation direction	Counterclockwise
Flange	ISO 7653 4 holes 80 mm
Pump shaft	DIN 5462 8x32x36
Maximum pressure	300 bar
Maximum rotation speed	1500 rpm
Thread press	G 1"
Volume range	80 - 150 cm³/rev
Suction connection	Flange with O-ring seal

Accessories

SEAL KIT SUNFAB SAP 84-108/SAPT 130

In stock

€ 97,00

Product code: SF50934

SUNFAB SUCTION CONNECTING KIT SC 084-108 130 SL SVH

In stock

€ 28,00

Product code: SF50225

Alternative products

PLUNGER PUMP EDBRO 130 CC ISO

On order

€ 1.133,00

Product code: EBA130-30
