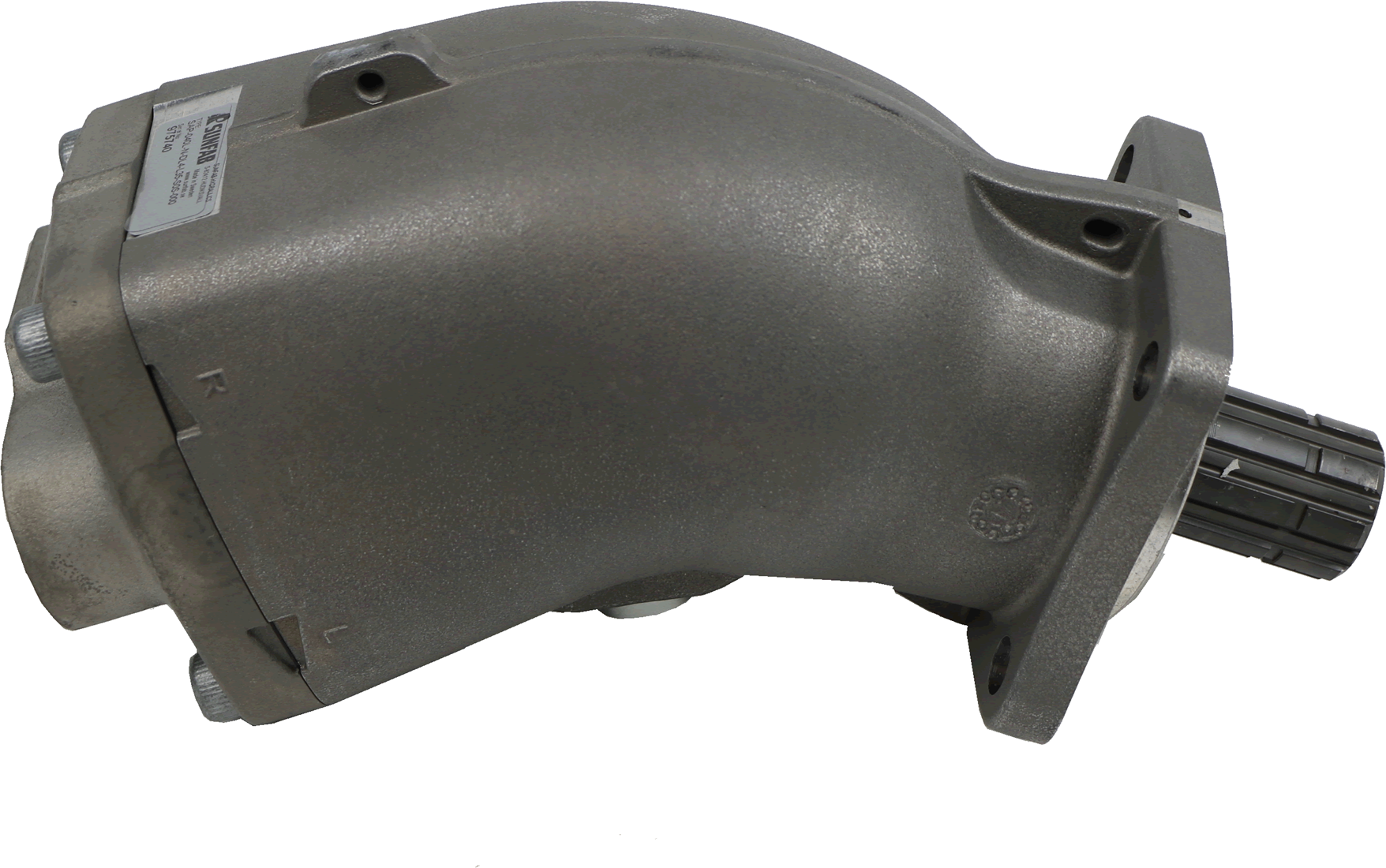

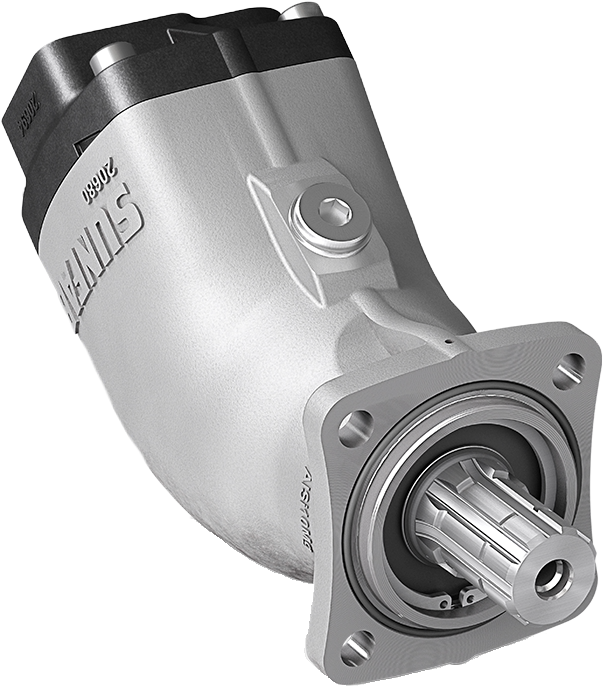

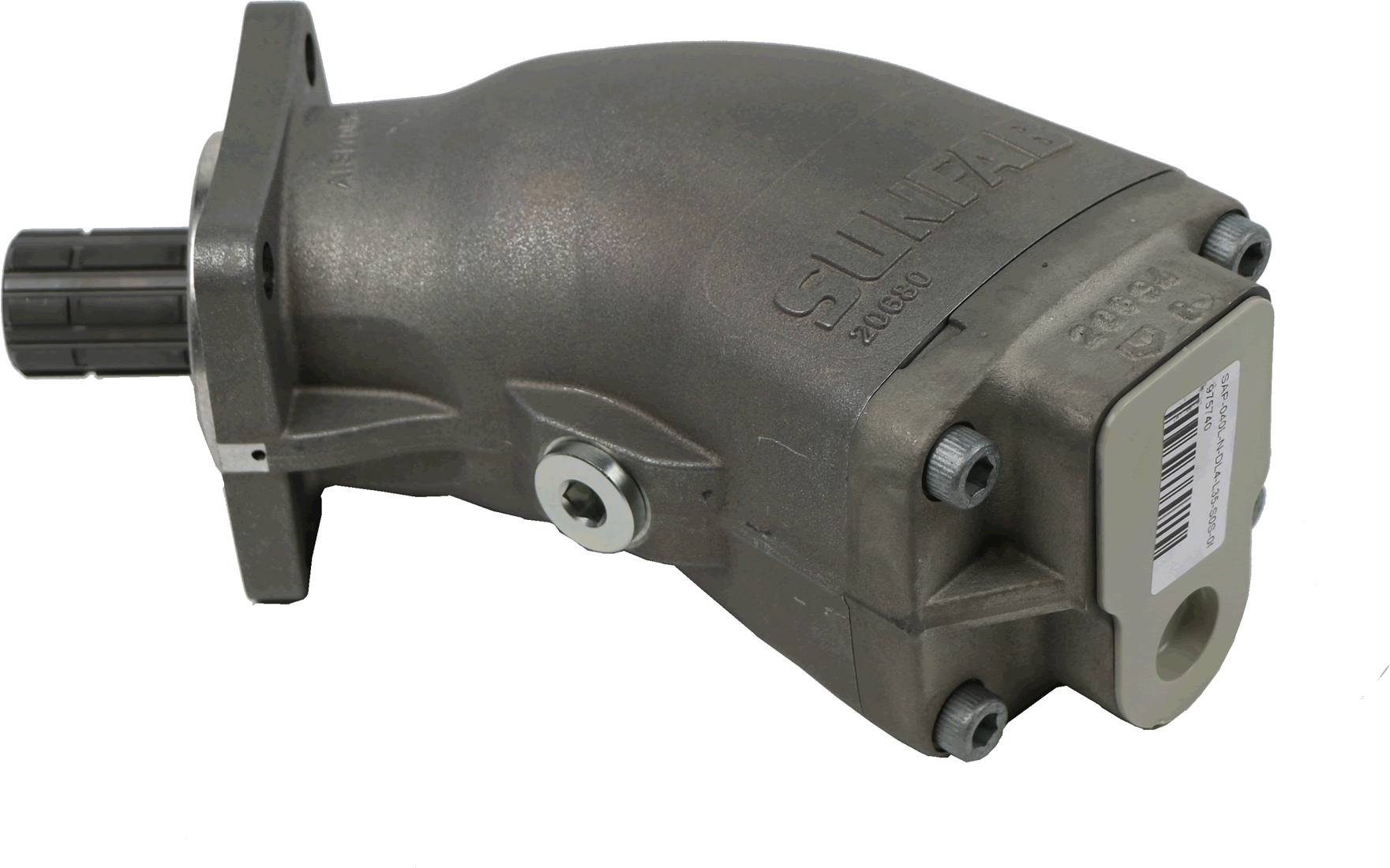

SUNFAB PLUNGER PUMP SAP-056 R

Artikelcode: SF23056R
€ 1.216,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

CONNECTION FOR SUCTION FITTING SUNFAB SC64-SCT90 1"

In stock

€ 62,00

Product code: SF50403

GASKET 4 HOLE ISO

In stock

€ 6,00

Product code: 50700100086

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO

In stock

€ 18,00

Product code: 11400000900

Product description and specifications
Documents
Accessories
Ask a Question

Product description

This small plunger pump from Sunfab with product code SF23056R is a right-turning pump designed for applications involving high pressure. The direction of rotation is easily adjustable, making this pump suitable for both PTO rotation directions. The suction fitting is included with this pump.
Another pressure nipple with a different thread is possible check the BSP adapters for a suitable one.
Another suction fitting is also possible check the appropriate suction fittings for this.
If more flow or a different connection flange is desired, please check our plunger pumps for an alternative.

Documents

Datasheet SAP-SAPT 012-130 DIN

Mounting instruction SAP/SAPT DIN

Exploded view SAP 056 DIN

Reversing rotating direction

Specifications

Brand	Sunfab
Product code	SF23056R
Displacement	56,7 cm³/rev
Rotation direction	Clockwise
Flange	ISO 7653 4 holes 80 mm
Pump shaft	DIN 5462 8x32x36
Maximum pressure	400 bar
Maximum rotation speed	1900 rpm
Thread press	G 3/4"
Volume range	41 - 79 cm³/rev
Suction connection	Flange with O-ring seal
