SUNFAB PLUNGER PUMP POWER CONTROLLER THROUGH SHAFT SVH-130 RDYN-2-LSP/L-2-350

Artikelcode: SF92297
€ 7.043,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
On order

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTOR 1" MALE - 1" MALE

In stock

€ 9,00

Product code: ABM16BM16

CONNECTION FOR SUCTION FITTING SUNFAB SC84-SC108 SCT130 1 1/4"

In stock

€ 84,00

Product code: SF50404

GASKET 4 HOLE ISO

In stock

€ 6,00

Product code: 50700100086

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO

In stock

€ 18,00

Product code: 11400000900

MULTI SEAL 1"

In stock

€ 2,00

Product code: BSC16

SUCTION FITTING 45° SUNFAB SC84-SC108 SCT130 45 MM (52-55)

On order

€ 94,00

Product code: SF20424

Product description and specifications
Documents
Ask a Question

Product description

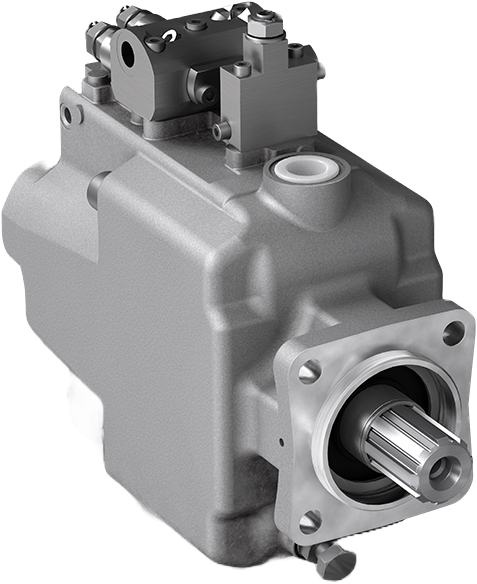

This variable plunger pump SF92157 SVH-130 from Sunfab is designed for direct mounting on the PTO of commercial vehicles. The pump has a maximum output of 130cc with power controller (torque limitation) and is clockwise running. The continuous drive shaft allows serial coupling of an additional pump, such as a fixed plunger pump from Sunfab.

See all suction fittings for a suitable one for your application. You can also find a suitable one for the nipple on the press among the BSP adapters.

Documents

Datasheet SVH 130

Mounting instruction SVH 062-130

Specifications

Brand	Sunfab
Product code	SF92297
Displacement	130 cm³/rev
Rotation direction	Clockwise
Flange	ISO 7653 4 holes 80 mm
Pump shaft	DIN 5462 8x32x36
Maximum pressure	400 bar
Maximum rotation speed	2100 rpm
Thread press	G 1"
Volume range	80 - 150 cm³/rev
Suction connection	Flange with O-ring seal
