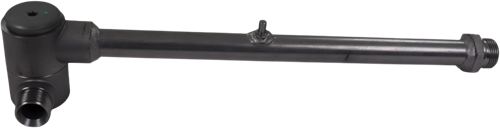

This specially developed swivel arm offers an innovative solution for optimal hose routing, either under the fifth wheel or at chassis height.
Its compact installation height and robust construction guarantee a long lifespan, making the swivel arm suitable for heavy-duty conditions in daily operations.
Technical Specifications:

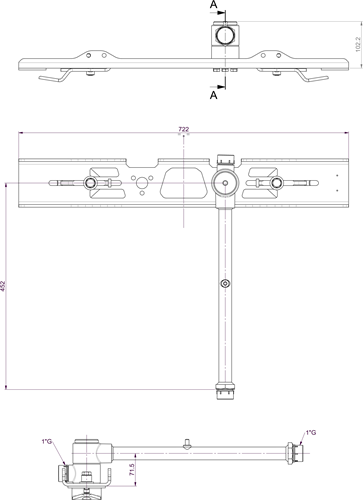

- Mounting: The swivel arm is easy to install with three M8 bolts on a standard chassis strip, simplifying both installation and maintenance.
- Connections: Equipped with G1” BSP connections, which ensure low hydraulic resistance in the system. This is essential for optimizing oil flow to tipping and moving-floor systems.
- Working Pressure: The swivel arm can withstand a working pressure of up to 250 bar, making it more than adequate for tipper and moving-floor applications and suitable for heavy industrial use.
Compatibility and Application
The swivel arm is universally compatible with standard chassis strips, making it suitable for a range of trucks and hydraulic systems.
Additionally, this model is also used in factory-fitted Scania EF240 hydraulic sets and is available as a replacement part for these configurations.
With this swivel arm, you ensure efficient and durable hose routing, extending the overall lifespan of the hydraulic system by reducing strain on hoses and couplings.
