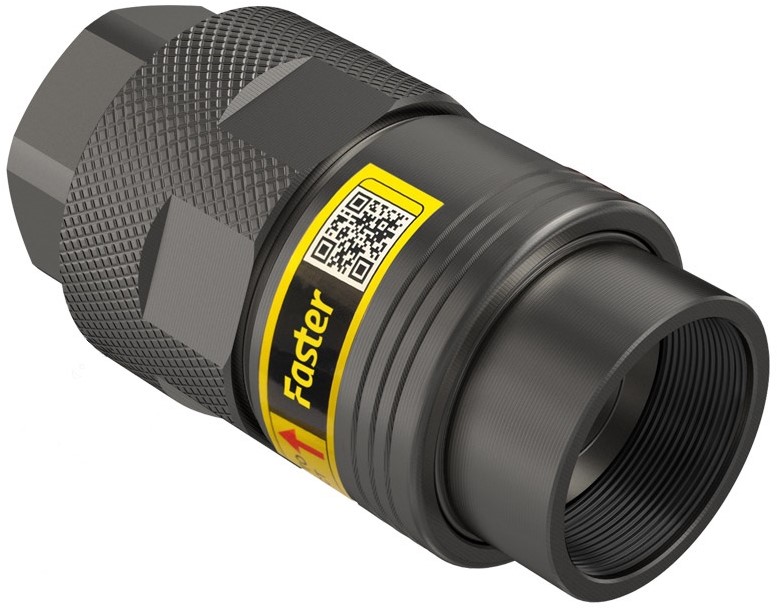

SCREW-TO-CONNECT COUPLING FHV24ET FEMALE SAE FLANGE HEAD 1-1/2"

Artikelcode: FHV24ET-76/24 F
€ 871,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
On order

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Product description and specifications
Documents
Ask a Question

Product description

Faster screw-on coupling FHV24ET (1-1/2") with connection SAE Flange Head 1-1/2", female.
Material seals HNBR & PUR.
Equipped with a safety sleeve to prevent accidental disconnection due to vibration. In addition, this type offers an extended temperature range, from -30°C to 120°C, in connected configuration.

Documents

Datasheet FHV

Specifications

Brand	Faster
Product code	FHV24ET-76/24 F
Quick coupling type	Screw-on Flat face
Type	Faster FHV
Body size	1-1/2"
Thread	SAE Flange Head 1-1/2"
Material	Steel
Seals	HNBR & PUR
Connection under pressure	Not allowed
Flow rate (at 2 bar)	420 L/min
Working pressure	460 bar
