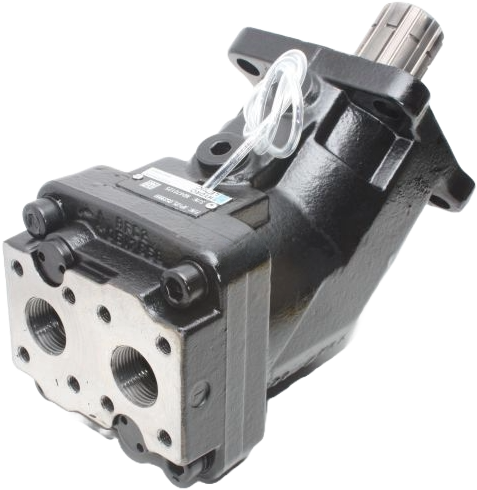

This bent axis XPi pump, with order code XPI130-0523730 and a displacement of 129,8 cm³/rev, is specially designed to meet the needs of truck equipment. The compact design allows a direct flange-mounting on the PTO and can be installed in environments with little space available, and be used at relative;ly high rotating speeds.
All models are of 7 piston design to ensure optimal flow regularity, and can withstand continuous working pressures up to 380 bar and 420 bar peak.
This bidirectional pump requires no user intervention to change the direction of rotation (simple switching of the suction fitting).
Suitable suction fitting supplied with the pump.
A different pressure nipple with a different thread is possible, check the
BSP adapters for a suitable one.
If more flow or a different connection flange is required, see our
piston pumps for an alternative.
