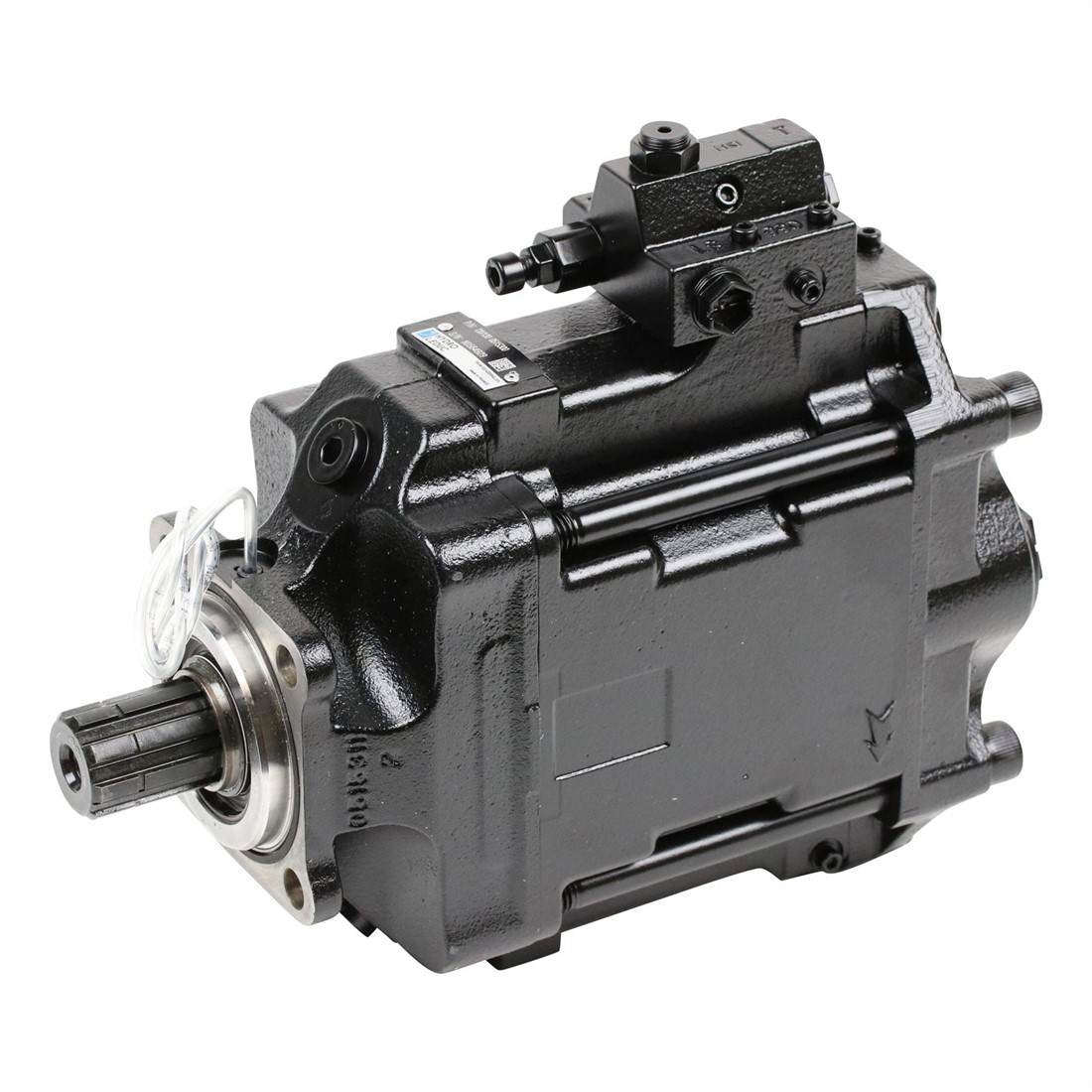

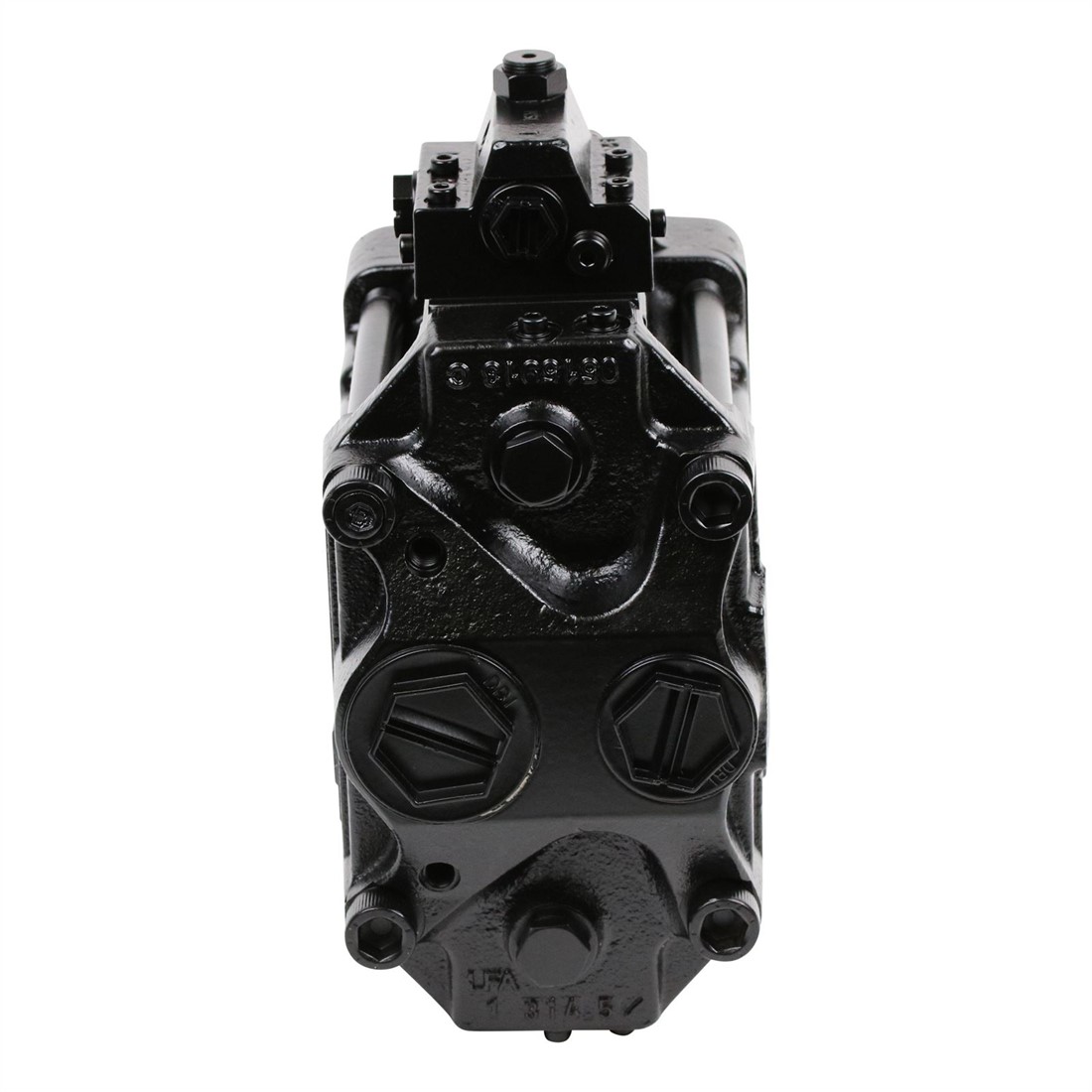

PLUNGER PUMP VARIABLE DISPLACEMENT RIGHT 150 CC

Artikelcode: TXV150-0518600
€ 4.885,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTOR 1" MALE - 1" MALE

In stock

€ 9,00

Product code: ABM16BM16

GASKET 4 HOLE ISO

In stock

€ 6,00

Product code: 50700100086

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO

In stock

€ 18,00

Product code: 11400000900

MULTI SEAL 1"

In stock

€ 2,00

Product code: BSC16

SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM

In stock

€ 55,00

Product code: 15510000592

Product description and specifications
Documents
Accessories
Ask a Question

Product description

Variable plunger pump TXV150 from Hydro Leduc with a variable stroke volume of up to 150cc. The pump is clockwise running and suitable for applications up to 310 bar.
See all suction fittings for a suitable one for your application. You can also find a suitable one for the nipple on the press among the BSP adapters.

Documents

Datasheet TXV

Mounting instruction Leduc TXV

Exploded view TXV 130-150

Specifications

Brand	Hydro Leduc
Product code	TXV150-0518600
Displacement	150 cm³/rev
Rotation direction	Clockwise
Flange	ISO 7653 4 holes 80 mm
Pump shaft	DIN 5462 8x32x36
Maximum pressure	310 bar
Maximum rotation speed	2000 rpm
Thread press	G 1"
Volume range	80 - 150 cm³/rev
Suction connection	G 1-1/2"

Accessories

LS REGULATOR WITH PRESSURECOMPENSATOR TXV NEW

In stock

€ 635,00

Product code: K000424
