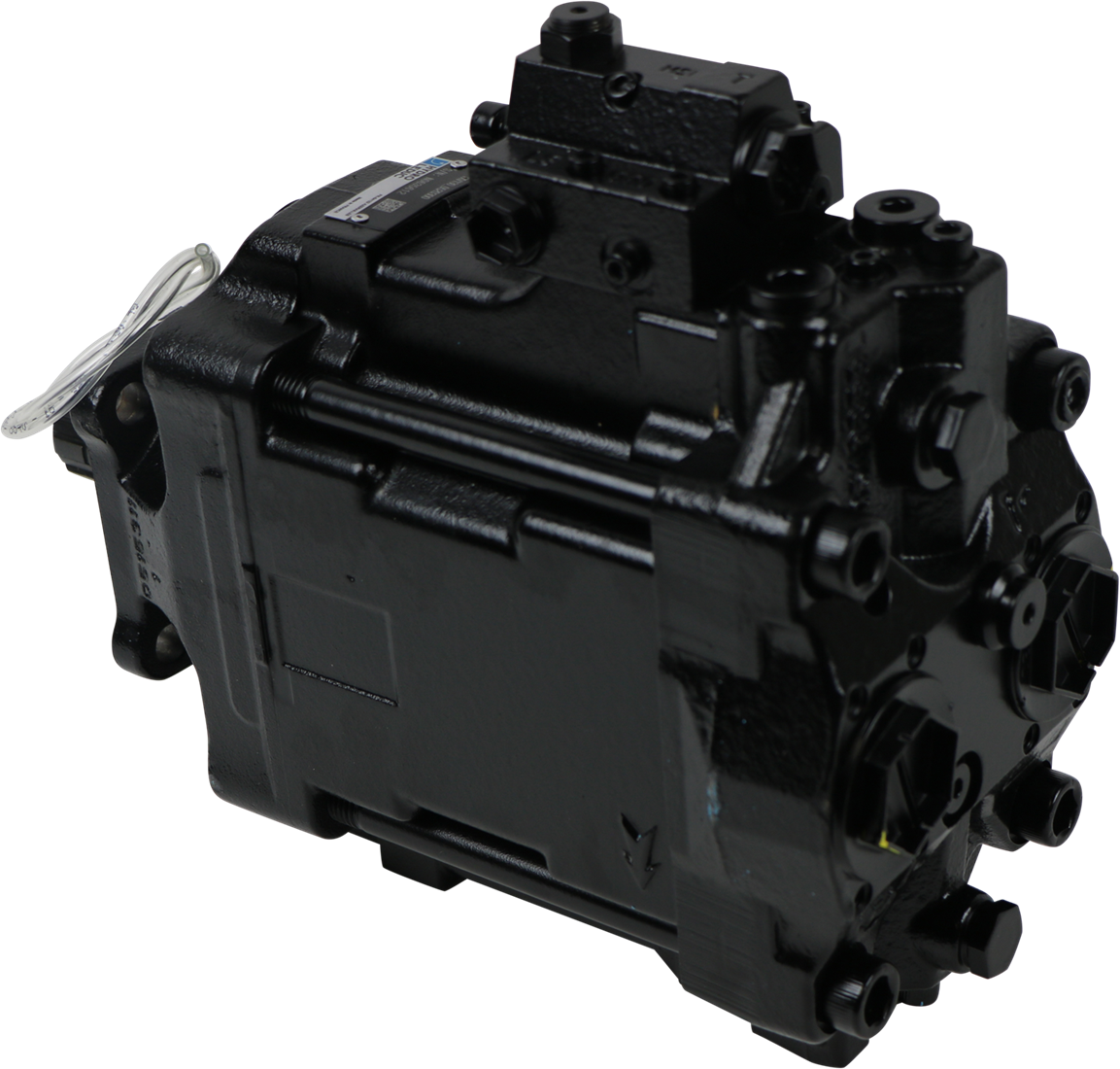

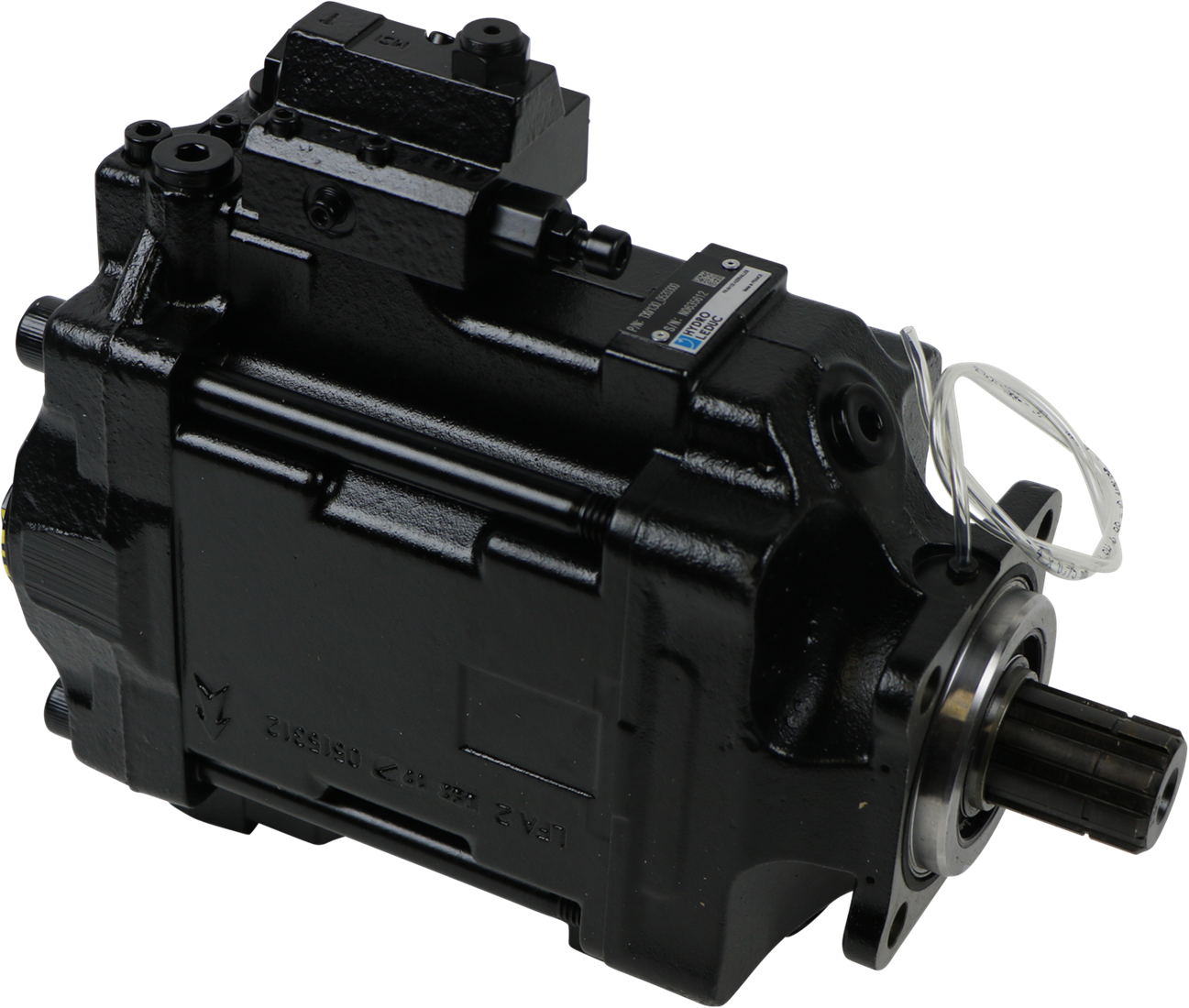

PLUNGER PUMP VARIABLE DISPLACEMENT INDEXABLE 130 CC

Artikelcode: TXV130BI-P001474
€ 4.390,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Soon on stock again

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

GASKET 4 HOLE ISO

In stock

€ 6,00

Product code: 50700100086

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO

In stock

€ 18,00

Product code: 11400000900

MULTI SEAL 1 1/4"

In stock

€ 3,00

Product code: BSC20

NIPPLE 1 1/4" MALE THREAD - 1 1/4" MALE THREAD

In stock

€ 11,00

Product code: ABM20BM20

SUCTION FITTING 90° 1 1/4" X 50 MM INCL HOSE CLAMP 60-63 MM

In stock

€ 52,00

Product code: 15510000501

Product description and specifications
Documents
Accessories
Ask a Question

Product description

Variable plunger pump TXV130 from Hydro Leduc with a variable stroke volume of up to 130cc and suitable for applications up to 365 bar.
The pump is supplied as a clockwise rotation pump as standard. The direction of rotation is easily reversible by changing the position of the indexing screw.
See all screw-in suction fittings or Hydro Leduc suction fittings for a suitable one for your application. You can also find a suitable one for the nipple on the press among the BSP adapters.

Documents

Datasheet TXV 130-150 indexable

Mounting instruction Leduc TXV

Exploded view TXV 130-150

Specifications

Brand	Hydro Leduc
Product code	TXV130BI-P001474
Displacement	130 cm³/rev
Rotation direction	Counterclockwise Clockwise
Flange	ISO 7653 4 holes 80 mm
Pump shaft	DIN 5462 8x32x36
Maximum pressure	365 bar
Maximum rotation speed	2100 rpm
Thread press	G 1-1/4"
Volume range	80 - 150 cm³/rev
Suction connection	G 1-1/4" Flange with O-ring seal

Accessories

LS REGULATOR WITH PRESSURECOMPENSATOR TXV NEW

In stock

€ 635,00

Product code: K000424
