PLUNGER PUMP T1 121 D PARKER/VOAC

Artikelcode: 3782120
€ 2.222,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTOR 1" MALE - 1" MALE

In stock

€ 9,00

Product code: ABM16BM16

BYPASS 24 VDC FOR F1 81-101 EN T1-21

In stock

€ 931,00

Product code: 3787203

GASKET 4 HOLE ISO

In stock

€ 6,00

Product code: 50700100086

MULTI SEAL 1"

In stock

€ 2,00

Product code: BSC16

SUCTION FITTING 45° PARKER 50 MM (60-63)

In stock

€ 69,00

Product code: 3780364

Product description and specifications
Documents
Accessories
Alternative products
Ask a Question

Product description

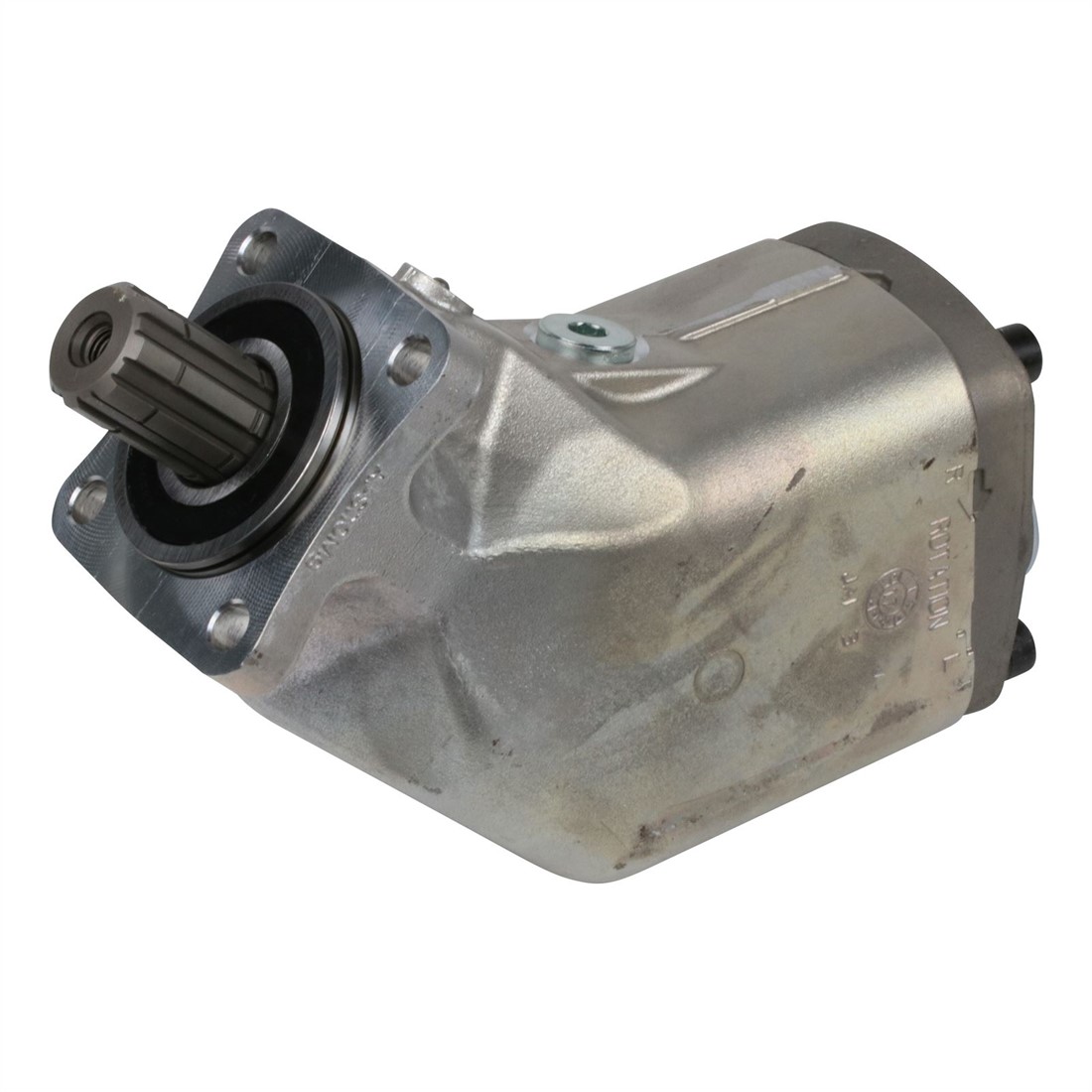

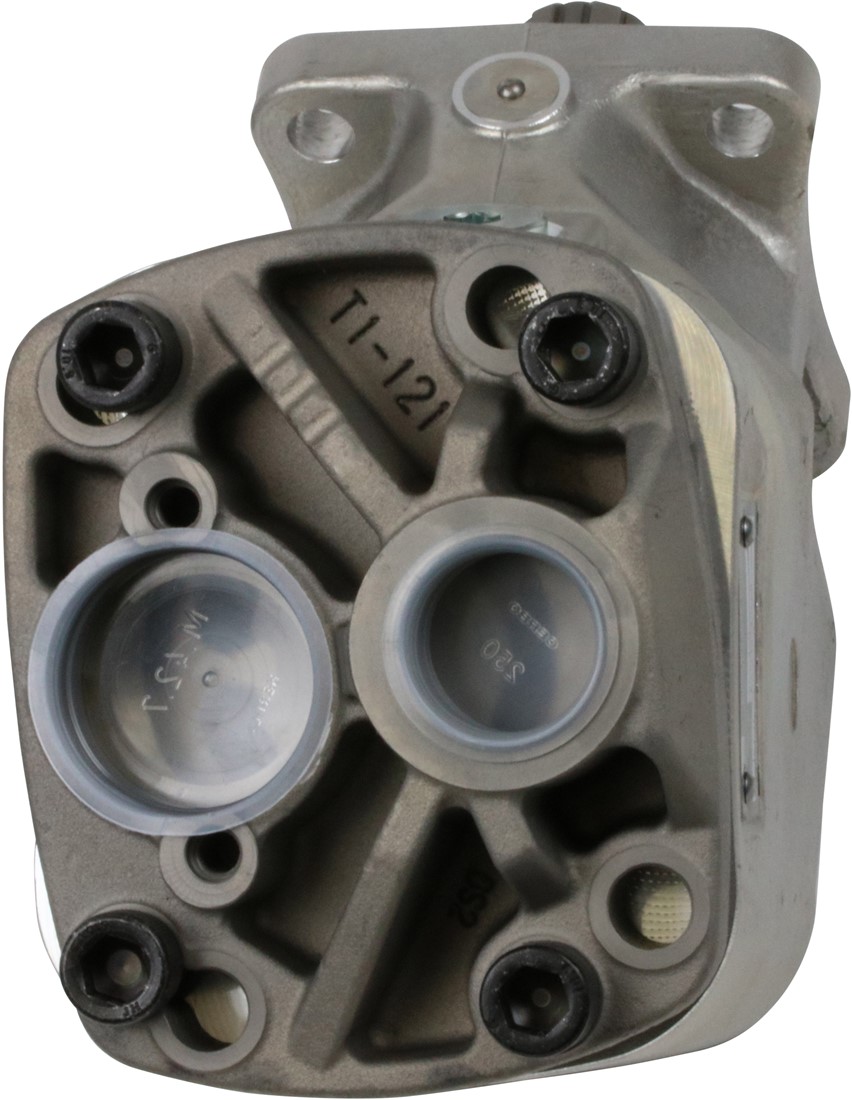

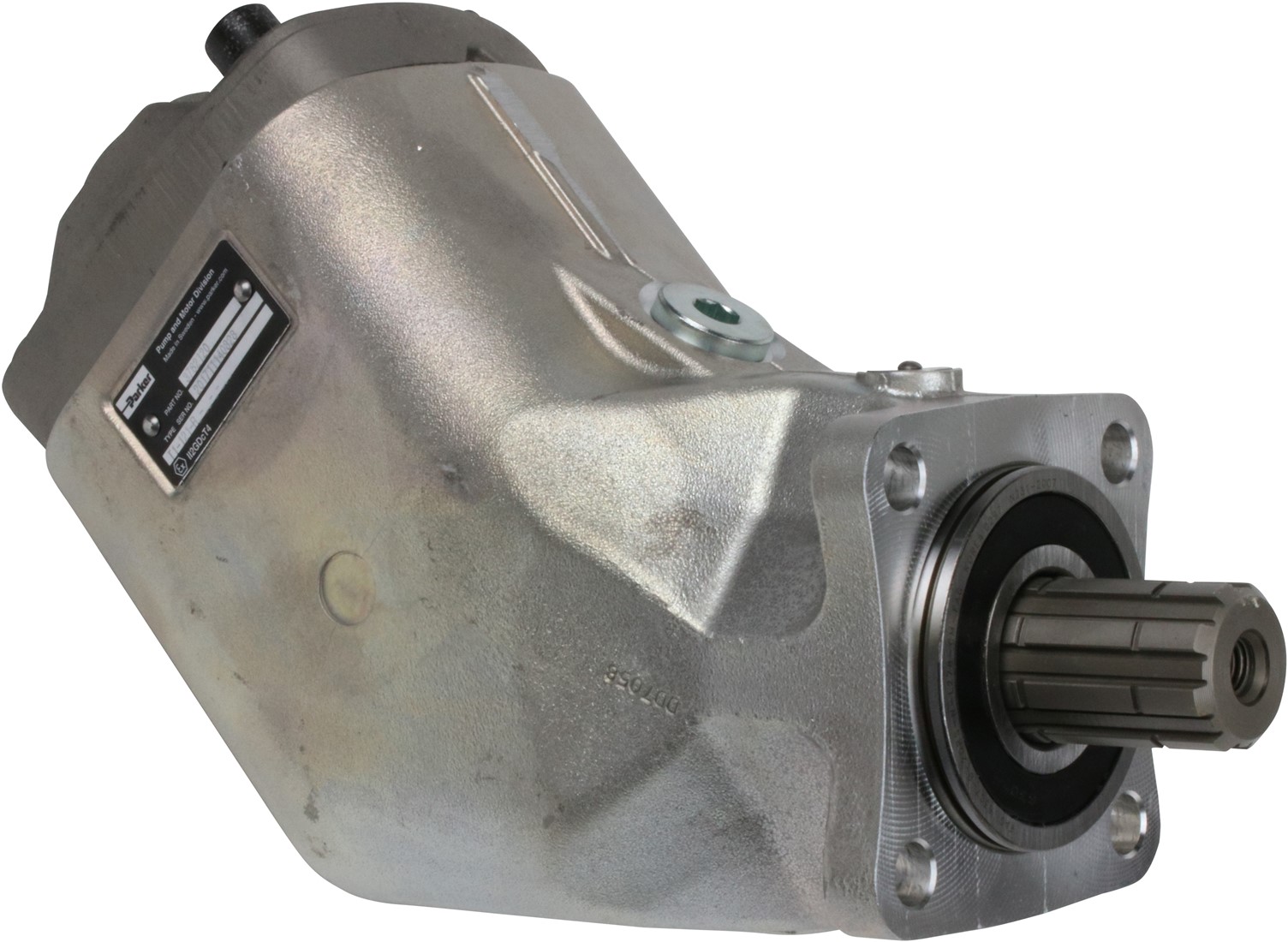

This Parker plunger pump 3782120 is frequently used in the transport industry. It can be mounted on either a gearbox PTO or an engine PTO with suitable bypass.
The direction of rotation is very easy to adjust so that this pump is suitable for all truck makes.

Our recommended suction fitting can also be replaced by one with a different suction hose diameter, see all our suction fittings that fit this pump.
The nipple on the press with a different thread is also possible, check the BSP adapters for a fitting.
If more flow or another connection flange is required, see our plunger pumps for an alternative.

Documents

Datasheet T1 81-121

Installation and start-up information F1/F2/T1

Exploded view series F1/T1

Reversing rotating direction

Specifications

Brand	Parker
Product code	3782120
Displacement	118,5 cm³/rev
Rotation direction	Clockwise
Flange	ISO 7653 4 holes 80 mm
Pump shaft	DIN 5462 8x32x36
Maximum pressure	250 bar
Maximum rotation speed	1600 rpm
Thread press	G 1"
Volume range	80 - 150 cm³/rev
Suction connection	Flange with O-ring seal
