Welke lengte heeft u nodig?
/
U heeft 0 stuks nodig voor 0 euro incl. BTW

  Artikelcode:
  PAC2-32-0511485


2.155,00
Ask for quotationAdd to wish list
Product Data Sheet
Available from stock
Add to favorites
  • Easy online ordering and payment
  • Scroll down for more information
  • We only supply excellent brands
  • Ask for our shipment arrangements
  • Need more info? Ask us below

Related products

ADAPTER 3/4" MALE - 1" MALE
8,00
Product code: ABM12BM16
GASKET 4 HOLE ISO
6,00
Product code: 50700100086
MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
18,00
Product code: 11400000900
MULTI SEAL 3/4"
In stock
2,00
Product code: BSC12
SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM
55,00
Product code: 15510000592
  • Product description and specifications
  • Documents
  • Ask a Question

Barcode

Product description

With their unique design, PAC pumps offer a robust and durable solution to the high pressure needs of truck applications. This is the series with the most compact dimensions.
Combining the automatic dual direction of rotation, high operating pressure of 400 bar (up to 500 bar peak), and their relative; insensitivity to lower performance fluids, PAC pumps are the solution for the most demanding environments.

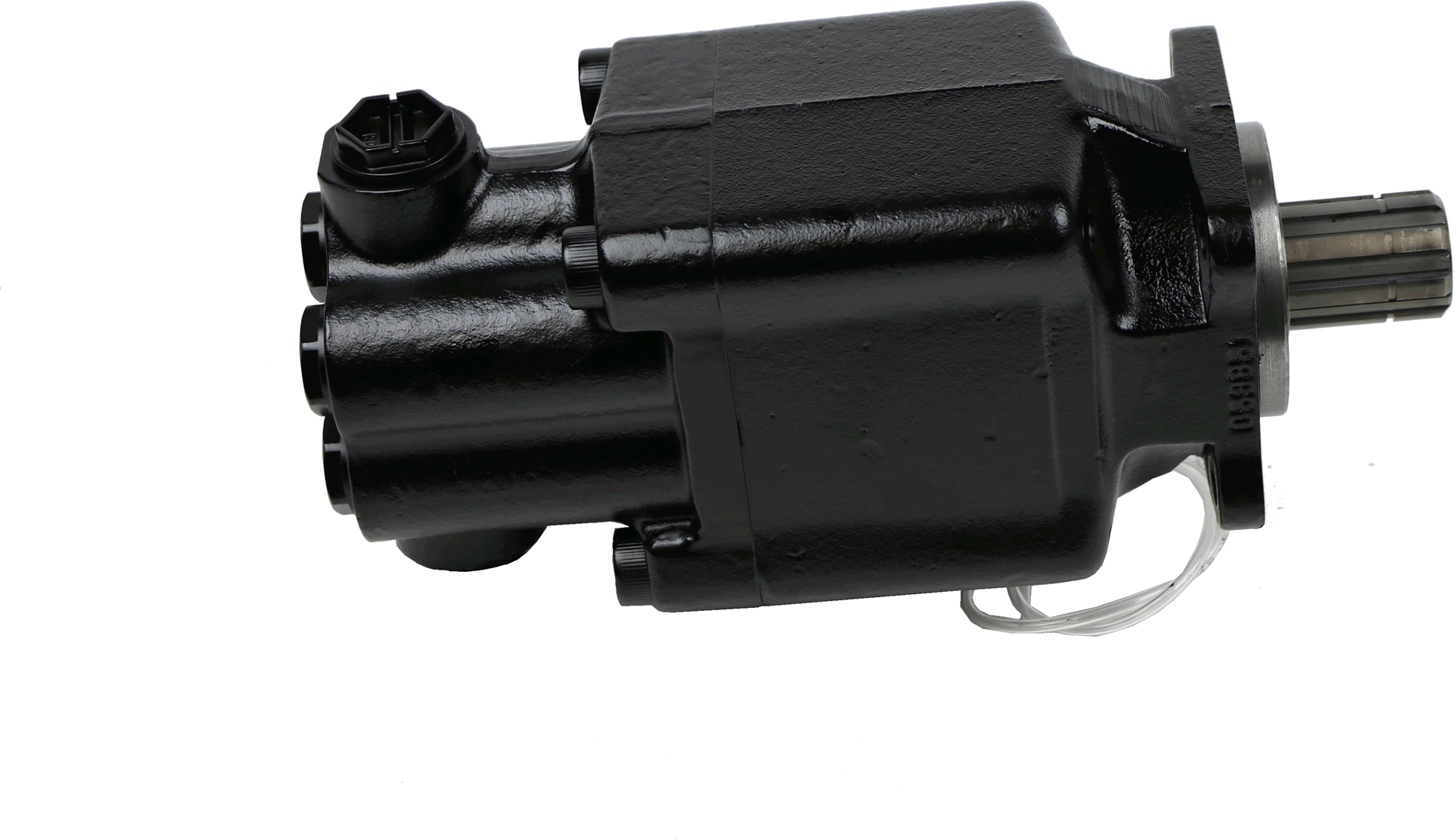

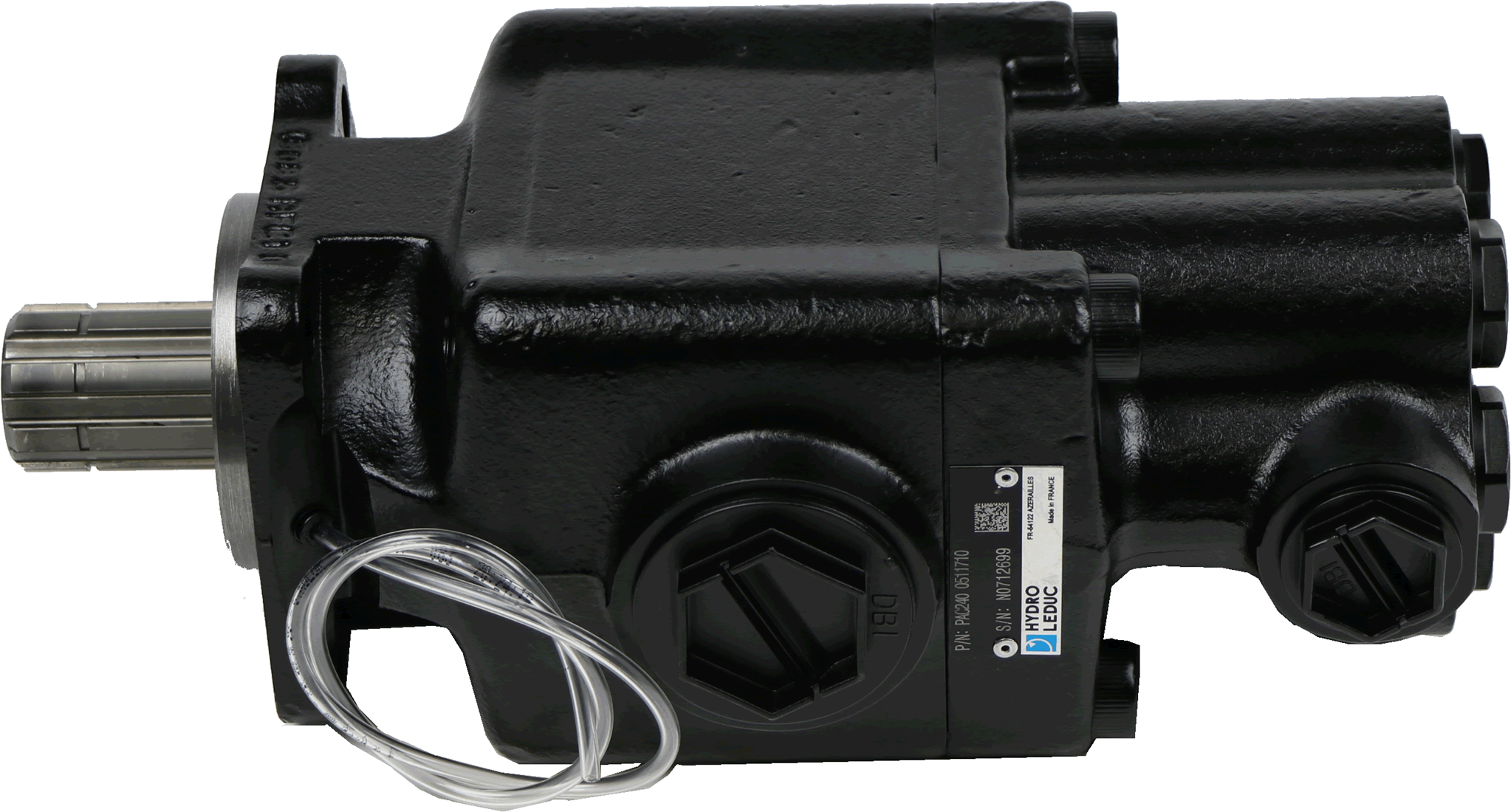

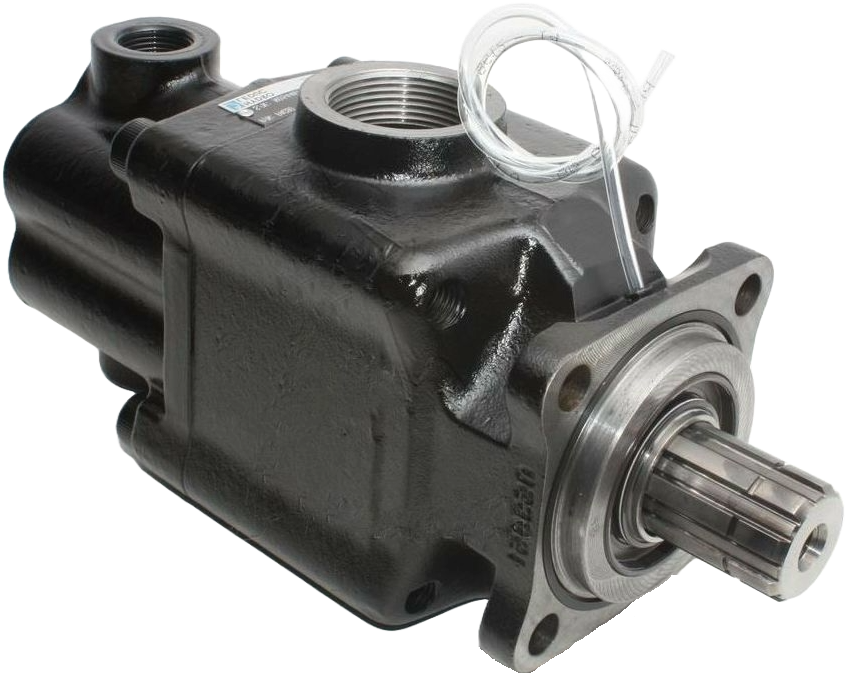

This Hydro Leduc double pump from the PAC series with order number PAC2-32 0511485 has 2 oil flows of 32 cc each.
Check the other double pumps for larger or smaller oil volumes.
We also have many alternatives available for the suction nipples and BSP adapters.

Documents

Specifications

BrandHydro Leduc
Product codePAC2-32-0511485
Displacement32-32 cm³/rev
Rotation directionBidirectional
FlangeISO 7653 4 holes 80 mm
Pump shaftDIN 5462 8x32x36
Maximum pressure400 bar
Maximum rotation speed1500 rpm
Thread pressG 3/4" + G 3/4"
Volume range3 - 40 cm³/rev
Suction connectionG 1-1/2"
