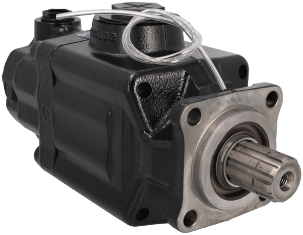

PLUNGER PUMP PA 2 X 50 CC

Artikelcode: PA2-50-0511555
€ 2.309,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
On order

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTER 3/4" MALE - 1" MALE

In stock

€ 8,00

Product code: ABM12BM16

GASKET 4 HOLE ISO

In stock

€ 6,00

Product code: 50700100086

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO

In stock

€ 18,00

Product code: 11400000900

MULTI SEAL 3/4"

In stock

€ 2,00

Product code: BSC12

SUCTION FITTING 90° 2" X 76 MM INCL HOSE CLAMP 86-91 MM

In stock

€ 138,00

Product code: 15510000743

Product description and specifications
Documents
Ask a Question

Product description

With their unique design, PA pumps offer a robust and durable solution to the high pressure needs of truck applications.
Combining the automatic dual direction of rotation, high operating pressure of 400 bar (up to 500 bar peak), and their relative; insensitivity to lower performance fluids, PA pumps are the solution for the most demanding environments.

This Hydro Leduc double pump from the PA series with order number PA2-50-0511555 has 2 oil flows of 52 cc each.
Check the other double pumps for larger or smaller oil volumes.
We also have many alternatives available for the suction nipples and BSP adapters.

Documents

Datasheet PA-PAC series

Mounting instruction Leduc PA-PAC

Exploded view PA-PAC series

Specifications

Brand	Hydro Leduc
Product code	PA2-50-0511555
Displacement	52-52 cm³/rev
Rotation direction	Bidirectional
Flange	ISO 7653 4 holes 80 mm
Pump shaft	DIN 5462 8x32x36
Maximum pressure	400 bar
Maximum rotation speed	1400 rpm
Thread press	G 3/4"
Volume range	41 - 79 cm³/rev
Suction connection	G 2"
