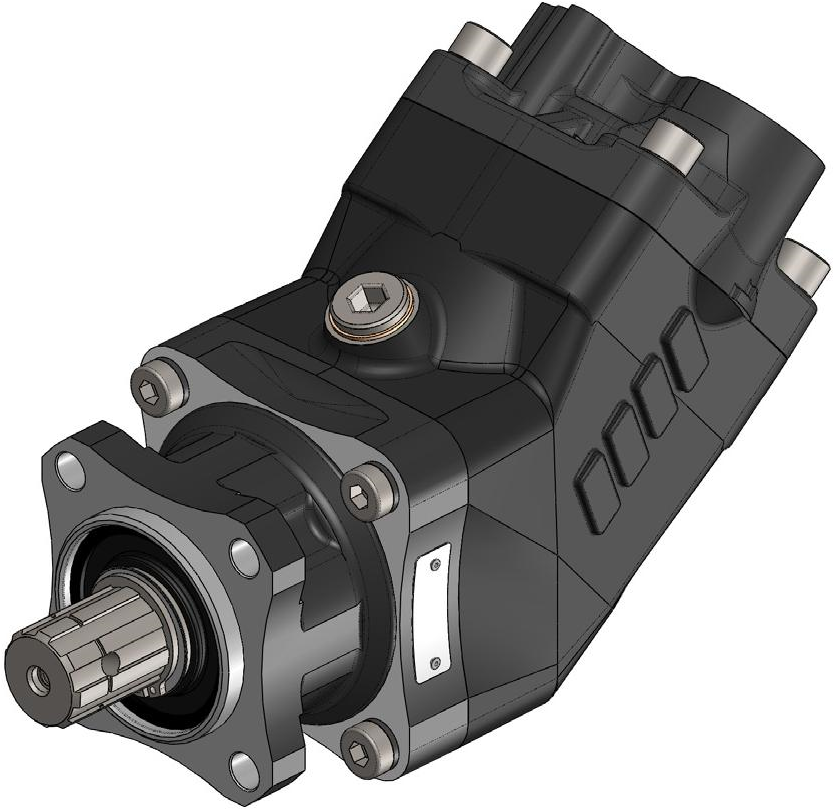

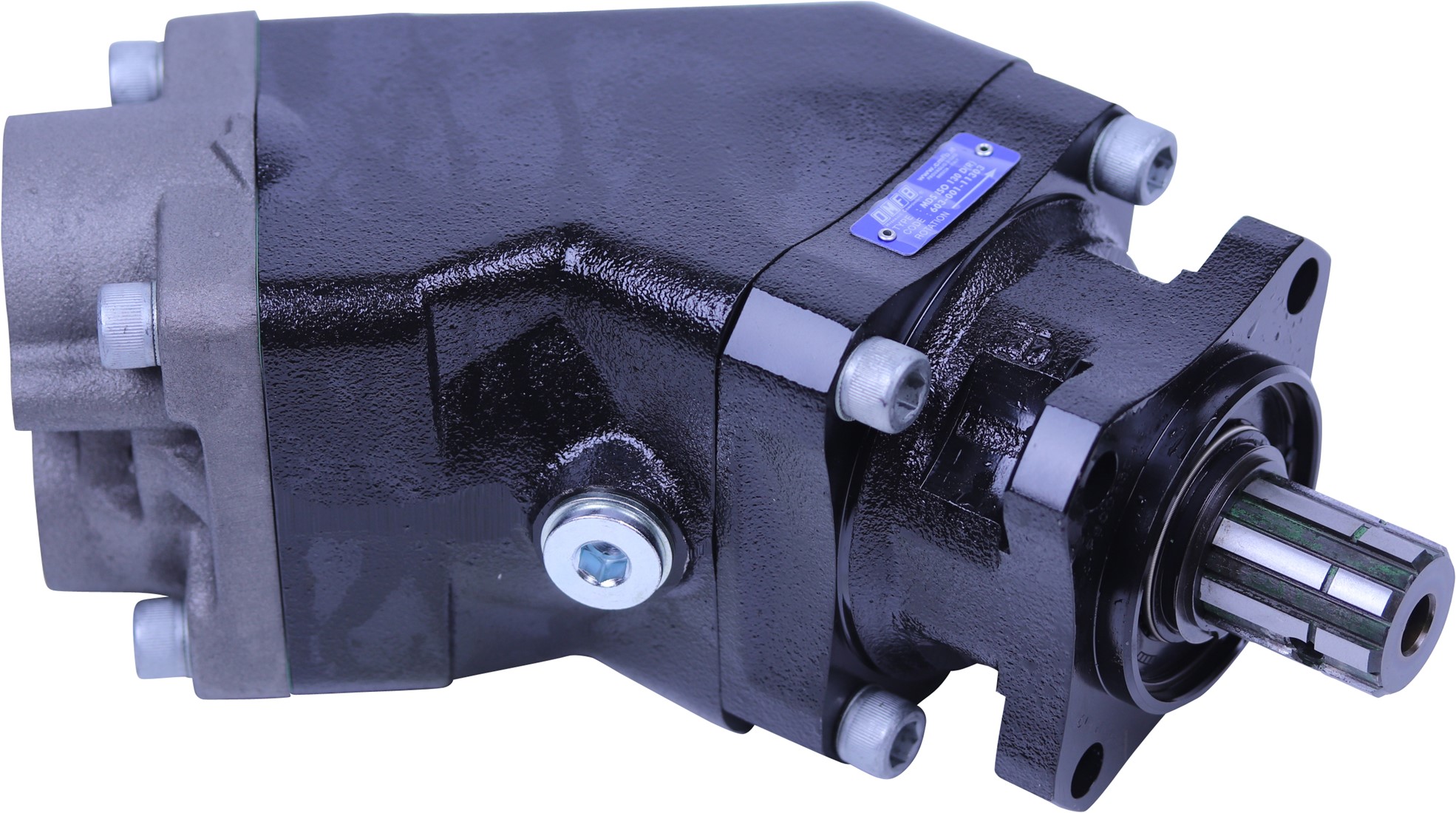

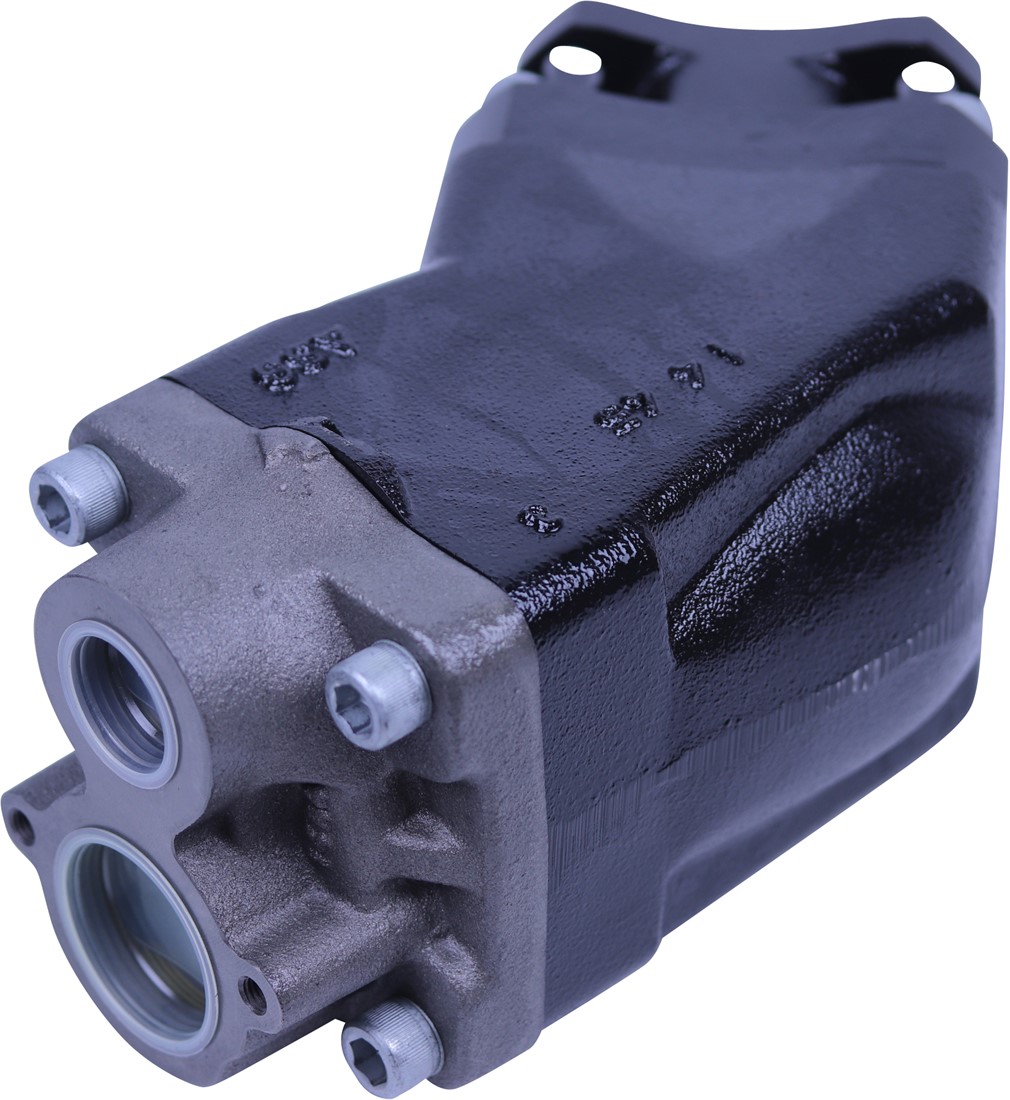

    PLUNGER PUMP MDS 80 D ISO

    Welke lengte heeft u nodig?
    /
    U heeft 0 stuks nodig voor 0 euro incl. BTW

      Artikelcode:
      60300110803


    € 1.255,00
    Ask for quotationAdd to wish list
    Product Data Sheet
    Available from stock
    Add to favorites
    • Easy online ordering and payment
    • Scroll down for more information
    • We only supply excellent brands
    • Ask for our shipment arrangements
    • Need more info? Ask us below

    Related products

    ADAPTOR 3/4" MALE - 3/4" MALE
    ADAPTOR 3/4" MALE - 3/4" MALE
    In stock
    € 6,00
    Product code: ABM12BM12
    BYPASS VALVE 24V HDS 40-64 / MDS 80
    BYPASS VALVE 24V HDS 40-64 / MDS 80
    In stock
    € 578,00
    Product code: 10820024494
    GASKET 4 HOLE ISO
    GASKET 4 HOLE ISO
    In stock
    € 6,00
    Product code: 50700100086
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO
    In stock
    € 18,00
    Product code: 11400000900
    MULTI SEAL 3/4"
    MULTI SEAL 3/4"
    In stock
    € 2,00
    Product code: BSC12
    SUCTION FITTING 45° 1 1/4" X 50 MM INCL HOSE CLAMP 60-63 MM
    SUCTION FITTING 45° 1 1/4" X 50 MM INCL HOSE CLAMP 60-63 MM
    In stock
    € 51,00
    Product code: 15509000497
    • Product description and specifications
    • Documents
    • Ask a Question

    Barcode

    Product description

    This OMFB plunger pump with order number 602 001 11803 is frequently used in the transport industry and is suitable for high pressure dump systems. This pump is a suitable alternative to a Parker, Sunfab and/or Edbro pump. The direction of rotation is very easy to adjust so that this pump is suitable for both directions of rotation of a PTO.

    Our recommended suction fitting can also be replaced by one with a different suction hose diameter, see all our suction fittings that fit this pump.
    The nipple on the press with a different thread is also possible, check the BSP adapters for a fitting.
    If more flow or another connection flange is required, see our plunger pumps for an alternative.

    Documents

    Datasheet HDS ISO 40-64 MDS ISO 80
    Mounting instruction bent axis pumps
    Exploded view HDS ISO 40-64 / MDS ISO 80
    Reversing rotating direction

    Specifications

    BrandOMFB
    Product code60300110803
    Displacement77,25 cm³/rev
    Rotation directionClockwise
    FlangeISO 7653 4 holes 80 mm
    Pump shaftDIN 5462 8x32x36
    Maximum pressure250 bar
    Maximum rotation speed1800 rpm
    Thread pressG 3/4"
    Volume range41 - 79 cm³/rev
    Suction connectionG 1-1/4"
