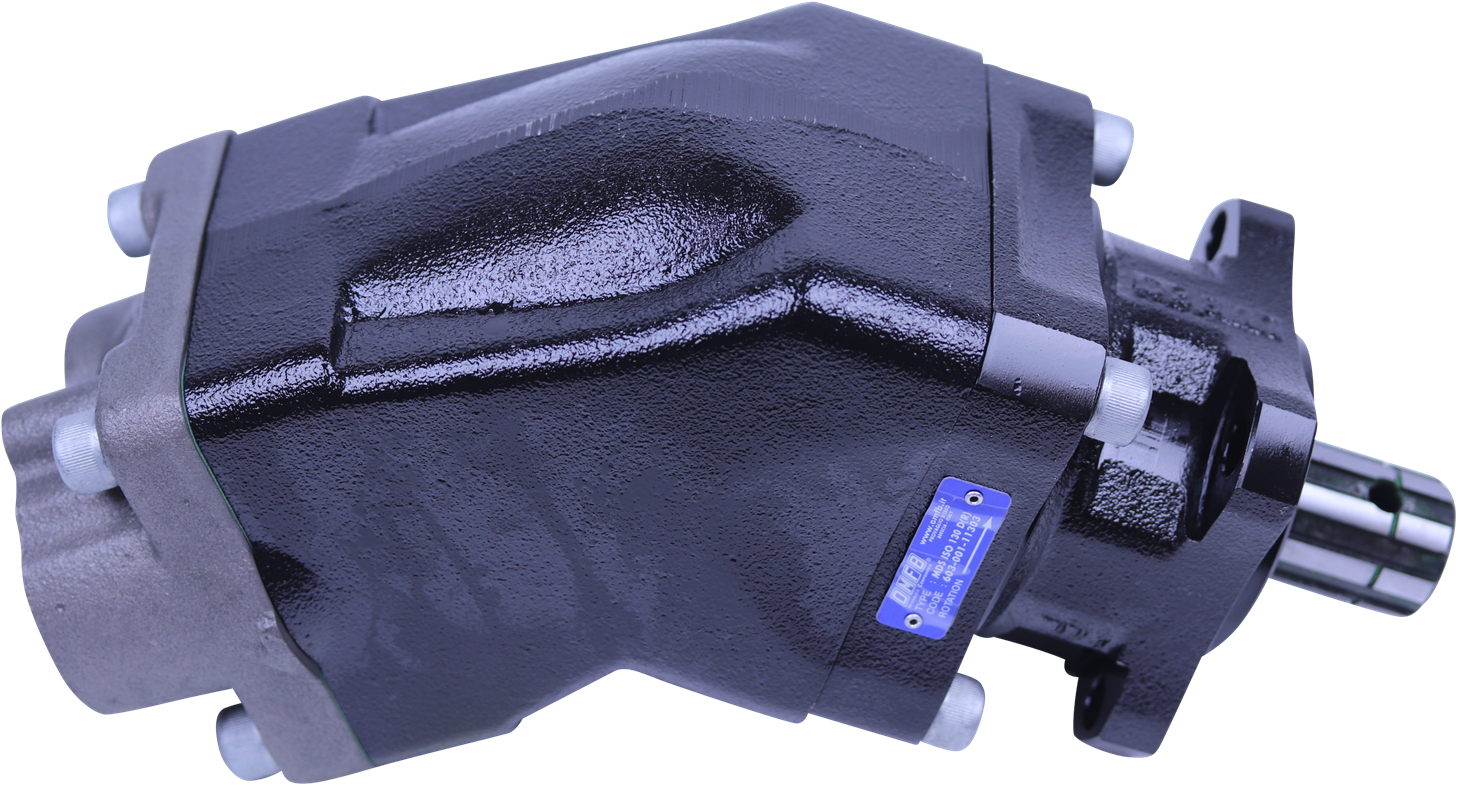

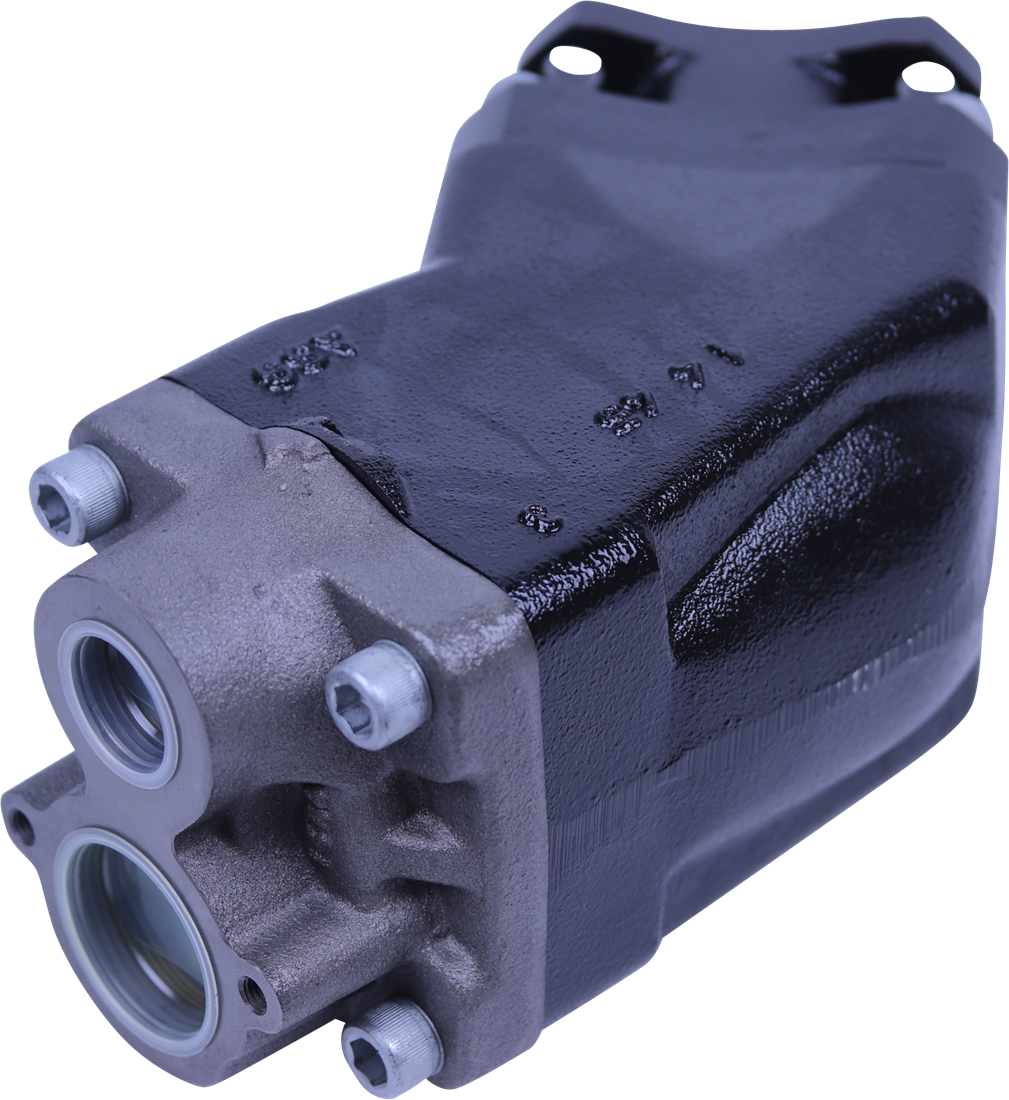

PLUNGER PUMP MDS 130 D ISO

Artikelcode: 60300111303
€ 1.558,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTOR 1" MALE - 1" MALE

In stock

€ 9,00

Product code: ABM16BM16

BYPASS VALVE 24V HDS 84-130 / MDS 130

In stock

€ 578,00

Product code: 10820024878

GASKET 4 HOLE ISO

In stock

€ 6,00

Product code: 50700100086

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO

In stock

€ 18,00

Product code: 11400000900

MULTI SEAL 1"

In stock

€ 2,00

Product code: BSC16

SUCTION FITTING 45° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM

In stock

€ 52,00

Product code: 15509000540

Product description and specifications
Documents
Ask a Question

Product description

This OMFB plunger pump with order number 602 001 11303 is frequently used in the transport industry and is ideally suited for high-pressure tipper systems. This pump is a suitable alternative to a Parker, Sunfab and/or Edbro pump. The direction of rotation is very easy to adjust so that this pump is suitable for both directions of rotation of a PTO.

Our recommended suction fitting can also be replaced by one with a different suction hose diameter, see all our suction fittings that fit this pump.
The nipple on the press with a different thread is also possible, check the BSP adapters for a fitting.
If more flow or another connection flange is required, see our plunger pumps for an alternative.

Documents

Datasheet HDS ISO 84-130 MDS ISO 120-130

Mounting instruction bent axis pumps

Exploded view HDS ISO 84-130 / MDS ISO 120-130

Reversing rotating direction

Specifications

Brand	OMFB
Product code	60300111303
Displacement	131,62 cm³/rev
Rotation direction	Clockwise
Flange	ISO 7653 4 holes 80 mm
Pump shaft	DIN 5462 8x32x36
Maximum pressure	250 bar
Maximum rotation speed	1500 rpm
Thread press	G 1"
Volume range	80 - 150 cm³/rev
Suction connection	G 1-1/2"
