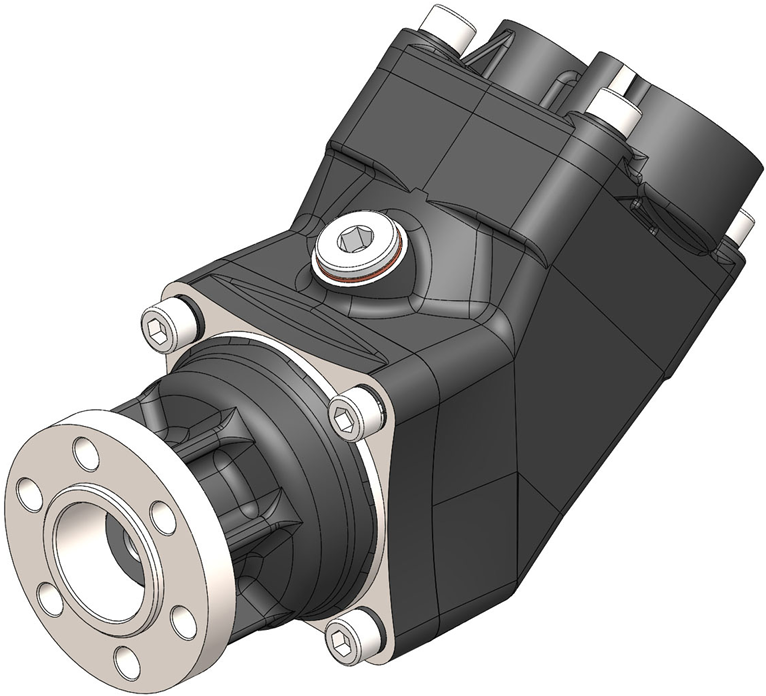

PLUNGER PUMP HDS 55 S UNI

Artikelcode: 60600210559
€ 1.250,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
On order

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTOR 3/4" MALE - 3/4" MALE

In stock

€ 6,00

Product code: ABM12BM12

BYPASS VALVE 24V HDS 40-64 / MDS 80

In stock

€ 578,00

Product code: 10820024494

GASKET 3 HOLE UNI

In stock

€ 4,00

Product code: 50700000014

MOUNTING KIT UNI COMPLETE

In stock

€ 19,00

Product code: 11400010604

MULTI SEAL 3/4"

In stock

€ 2,00

Product code: BSC12

SUCTION FITTING 45° 1 1/4" X 50 MM INCL HOSE CLAMP 60-63 MM

In stock

€ 51,00

Product code: 15509000497

SUCTION FITTING 45° 1 1/4" X 63 MM INCL HOSE CLAMP 74-79 MM

In stock

€ 63,00

Product code: 15509000531

Product description and specifications
Documents
Ask a Question

Product description

This small OMFB plunger pump for a 3-hole PTO with order number 606 002 10559 is a suitable alternative to a Parker, Sunfab and/or Edbro pump. The direction of rotation is very easy to adjust so that this pump is suitable for both directions of rotation of a PTO.

Our recommended suction fitting can also be replaced by one with a different suction hose diameter, see all our suction fittings that fit this pump.
The nipple on the press with a different thread is also possible, check the BSP adapters for a fitting.
If more flow or another connection flange is required, see our plunger pumps for an alternative.

Documents

Datasheet HDS UNI 40-64

Mounting instruction bent axis pumps

Exploded view HDS UNI 40-64

Reversing rotating direction

Specifications

Brand	OMFB
Product code	60600210559
Displacement	56,70 cm³/rev
Rotation direction	Counterclockwise
Flange	UNI 3 holes
Pump shaft	UNI 8953 6x21x25
Maximum pressure	320 bar
Maximum rotation speed	1900 rpm
Thread press	G 3/4"
Volume range	41 - 79 cm³/rev
Suction connection	G 1-1/4"
