PLUNGER PUMP HDS 47 D SAE BB 15T 16/32 BSP

Artikelcode: 61307710473
€ 1.218,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
On order

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTOR 3/4" MALE - 3/4" MALE

In stock

€ 6,00

Product code: ABM12BM12

BYPASS VALVE 24V HDS 40-64 / MDS 80

In stock

€ 578,00

Product code: 10820024494

GASKET SAE B

In stock

€ 9,00

Product code: 50700300413

MULTI SEAL 3/4"

In stock

€ 2,00

Product code: BSC12

SUCTION FITTING 45° 1 1/4" X 50 MM INCL HOSE CLAMP 60-63 MM

In stock

€ 51,00

Product code: 15509000497

Product description and specifications
Documents
Ask a Question

Product description

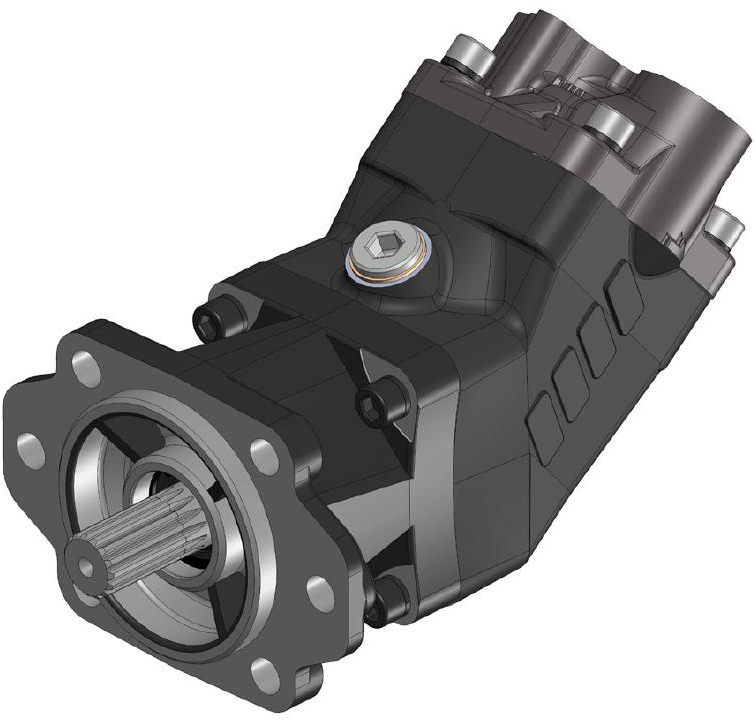

This OMFB plunger pump with order number 613 077 10473 is equipped with an SAE-BB 6-hole flange and SAE BB 15 T 16/32 shaft. The direction of rotation is very easy to adjust so that this pump is suitable for both directions of rotation of a PTO.

Our recommended suction fitting can also be replaced by one with a different suction hose diameter, see all our suction fittings that fit this pump.
The nipple on the press with a different thread is also possible, check the BSP adapters for a fitting.
If more flow or another connection flange is required, see our plunger pumps for an alternative.

Documents

Datasheet HDS-MDS SAE BB 47-80

Mounting instruction bent axis pumps

Reversing rotating direction

Specifications

Brand	OMFB
Product code	61307710473
Displacement	47,13 cm³/rev
Rotation direction	Clockwise
Flange	SAE-BB 6 holes 89,8 mm
Pump shaft	SAE BB 15T 16/32
Maximum pressure	350 bar
Maximum rotation speed	1900 rpm
Thread press	G 3/4"
Volume range	41 - 79 cm³/rev
Suction connection	G 1-1/4"
