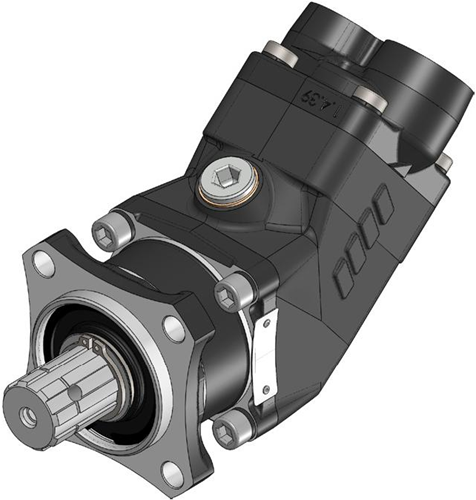

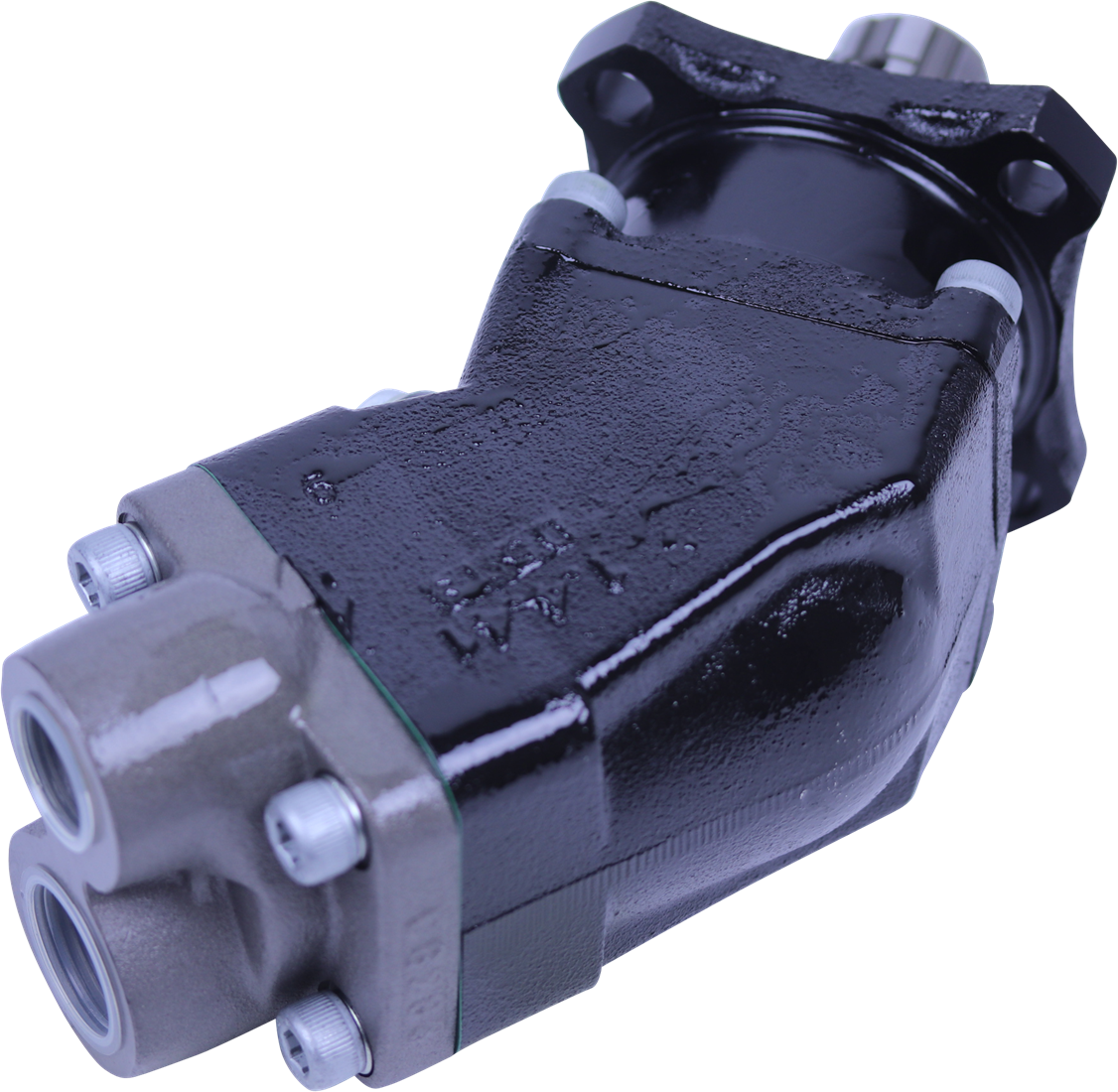

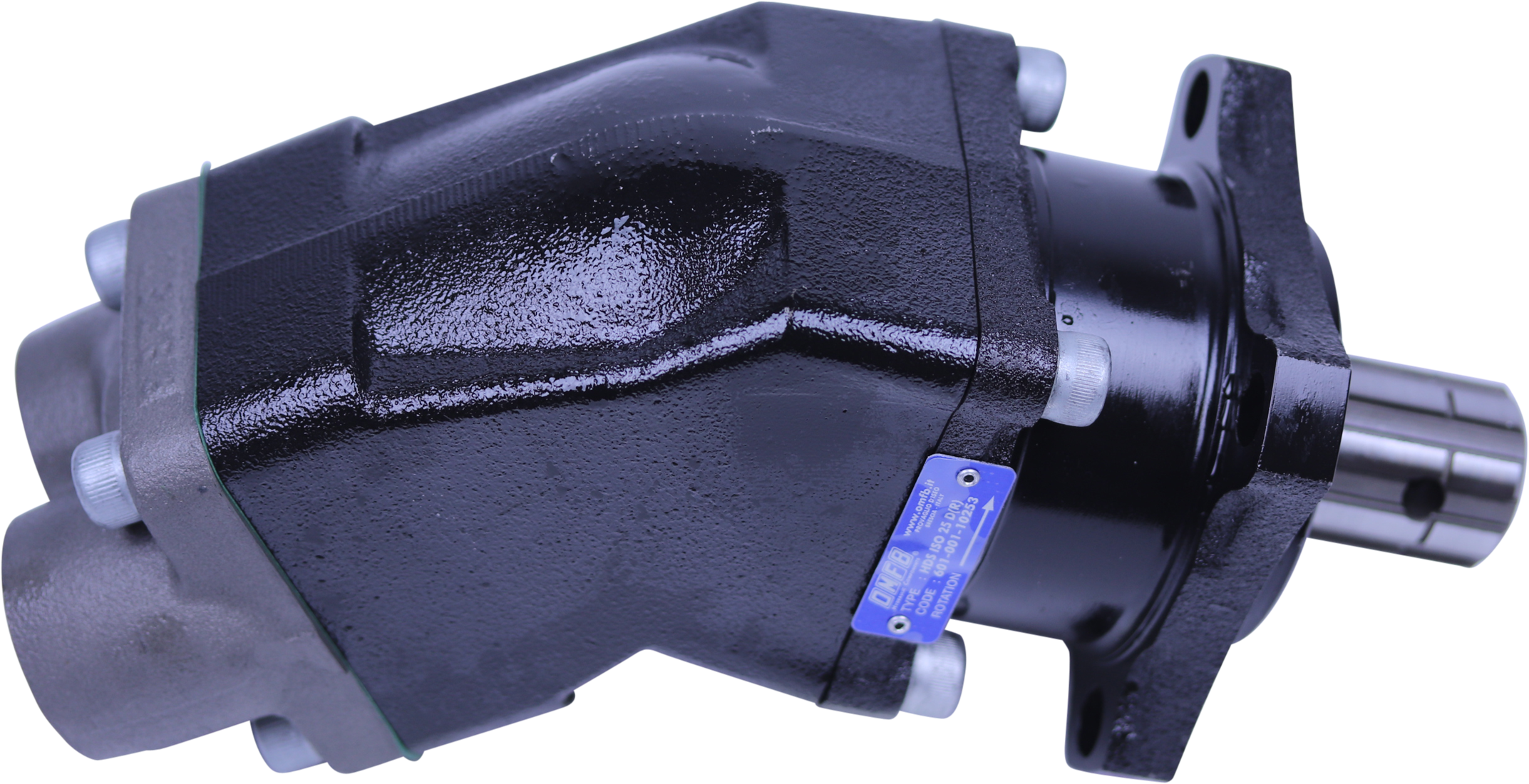

PLUNGER PUMP HDS 34 D ISO

Artikelcode: 60100110343
€ 1.083,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTOR 3/4" MALE - 3/4" MALE

In stock

€ 6,00

Product code: ABM12BM12

BYPASS VALVE (PILOT) 24V HDS 12-34

In stock

€ 578,00

Product code: 10820024341

GASKET 4 HOLE ISO

In stock

€ 6,00

Product code: 50700100086

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO

In stock

€ 18,00

Product code: 11400000900

MULTI SEAL 3/4"

In stock

€ 2,00

Product code: BSC12

SUCTION FITTING 45° 1" X 38 MM INCL HOSE CLAMP 48-51 MM

In stock

€ 50,00

Product code: 15509000460

Product description and specifications
Documents
Ask a Question

Product description

This small OMFB plunger pump with order number 601 001 10343 is a suitable alternative to a Parker, Sunfab and/or Edbro pump. The direction of rotation is very easy to adjust so that this pump is suitable for both directions of rotation of a PTO.

Our recommended suction fitting can also be replaced by one with a different suction hose diameter, see all our suction fittings that fit this pump.
The nipple on the press with a different thread is also possible, check the BSP adapters for a fitting.
If more flow or another connection flange is required, see our plunger pumps for an alternative.

Documents

Datasheet HDS ISO 12-34

Mounting instruction bent axis pumps

Exploded view HDS ISO 12-34

Reversing rotating direction

Specifications

Brand	OMFB
Product code	60100110343
Displacement	33,8 cm³/rev
Rotation direction	Clockwise
Flange	ISO 7653 4 holes 80 mm
Pump shaft	DIN 5462 8x32x36
Maximum pressure	350 bar
Maximum rotation speed	2300 rpm
Thread press	G 3/4"
Volume range	3 - 40 cm³/rev
Suction connection	G 1"
