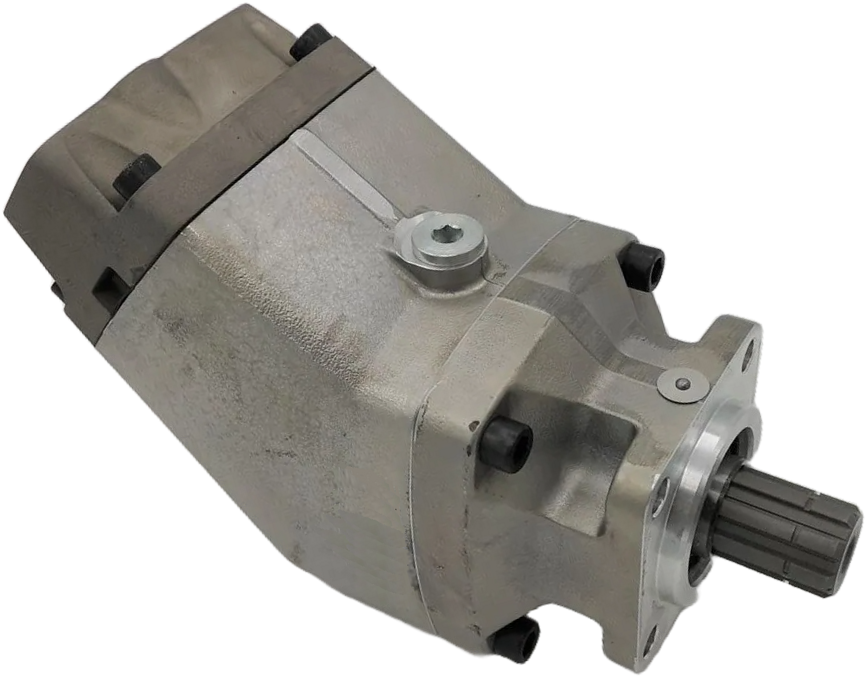

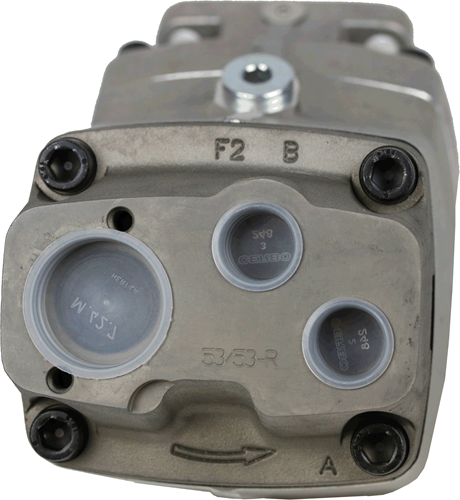

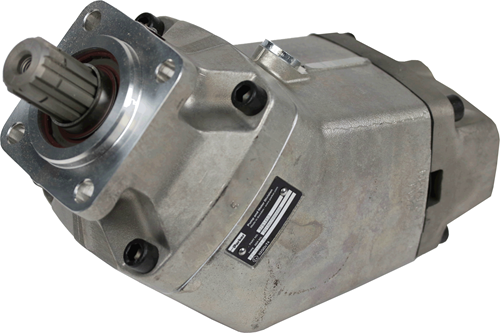

This hydraulic plunger pump F2-53/53-L from Parker is an evolution of the Twin Flow version of the F1 series, the very first bent-axis truck pump on the market with two completely independent flow rates.
With a well-structured hydraulic system, the primary advantage of a Twin-Flow pump is the capability to deliver three different flows at the same engine speed. With a Smart System Solution, this F2-pump ensures circuit reliability at speeds up to 2100 rpm at 350 bar (5075 psi).
The F2-hydraulic plunger pump is highly efficient and straightforward, with unsurpassed reliability. Its compact size allows for easy and cost-effective installation.
View all
suction fittings for a suitable one for your application. You can also find a suitable fitting for the outher pressure port among the
BSP adapters.
Features/Benefits:
- Displacement of 55/52 - supporting various applications.
- Accessories for direct mounting on an engine PTO - (bypass).
- 3 flows from 1 pump, 2 separate flows that can be combined.
- High self-priming speeds - increased productivity.
- High overall efficiency - enhanced reliability.
- Lightweight - Low torsional moment on the PTO, easy to install.
- Laminated suction rings - low internal leakage and extended operating time.
- Installation above reservoir level is possible - installation flexibility.
- Operating pressure up to 350 bar. The shaft end and mounting flange comply with ISO-DIN 5462.
- Small installation dimensions - suitable for a wide range of applications.
- Tolerates low and high-temperature shocks - suitable for the most demanding environments.
