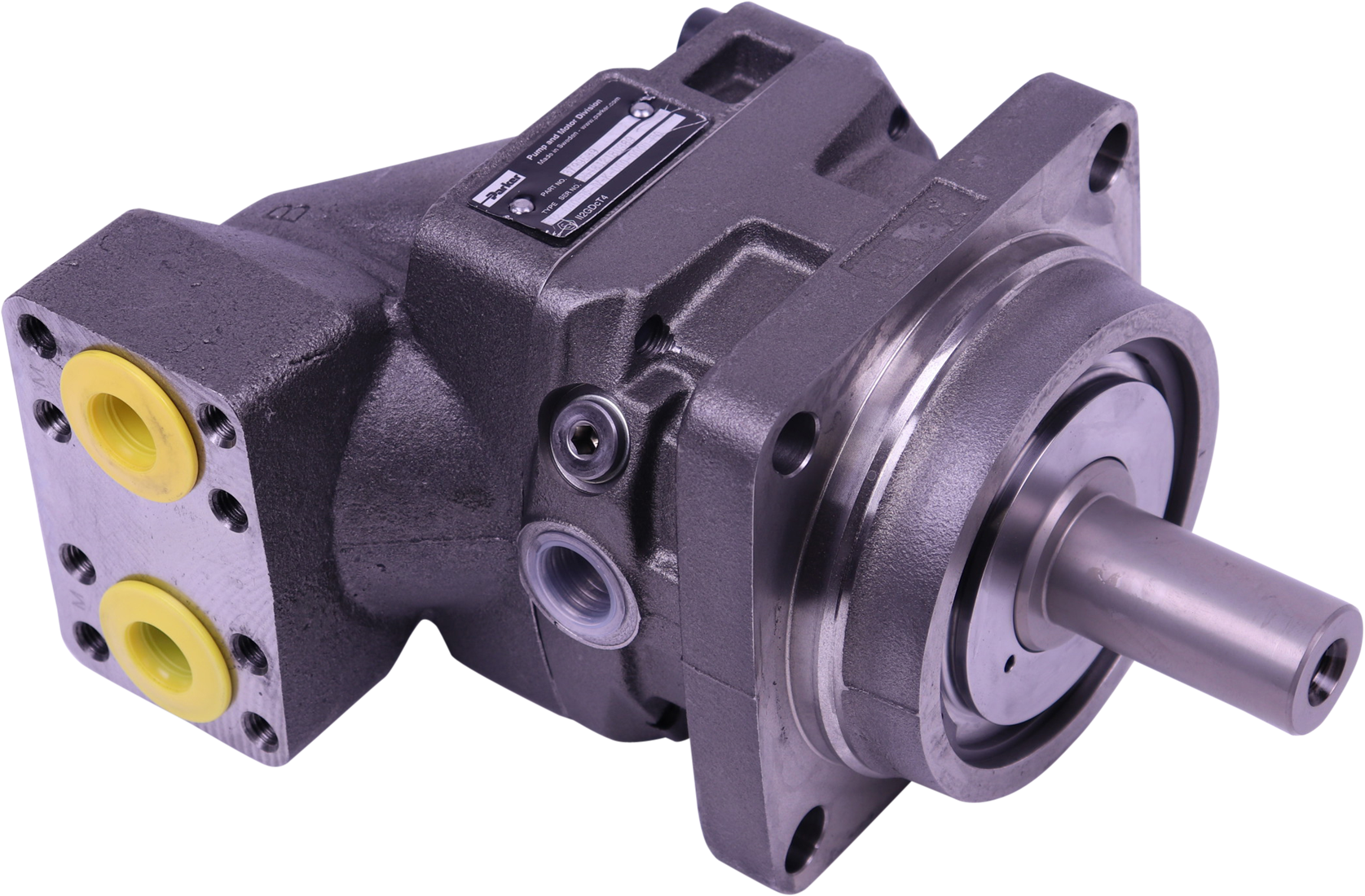

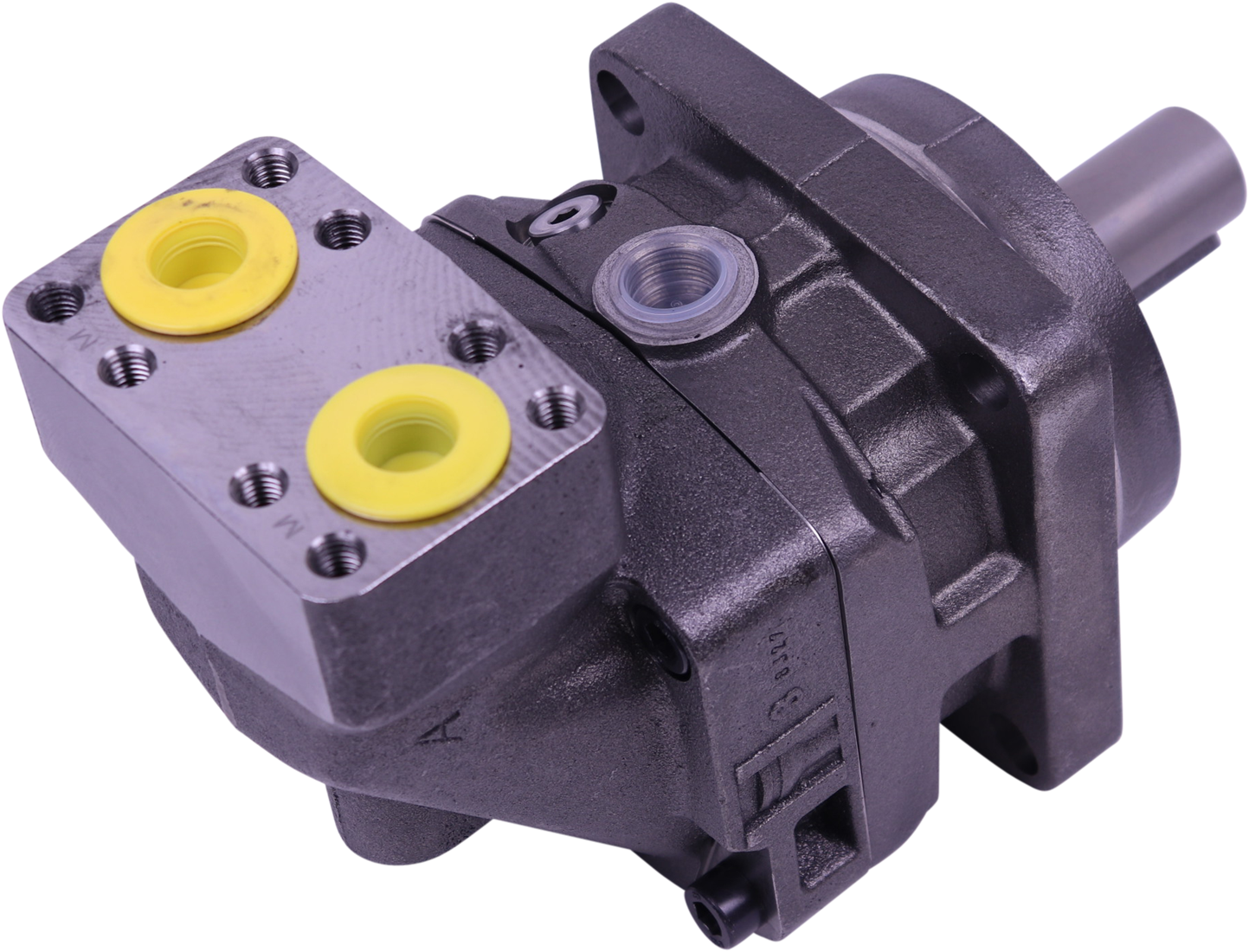

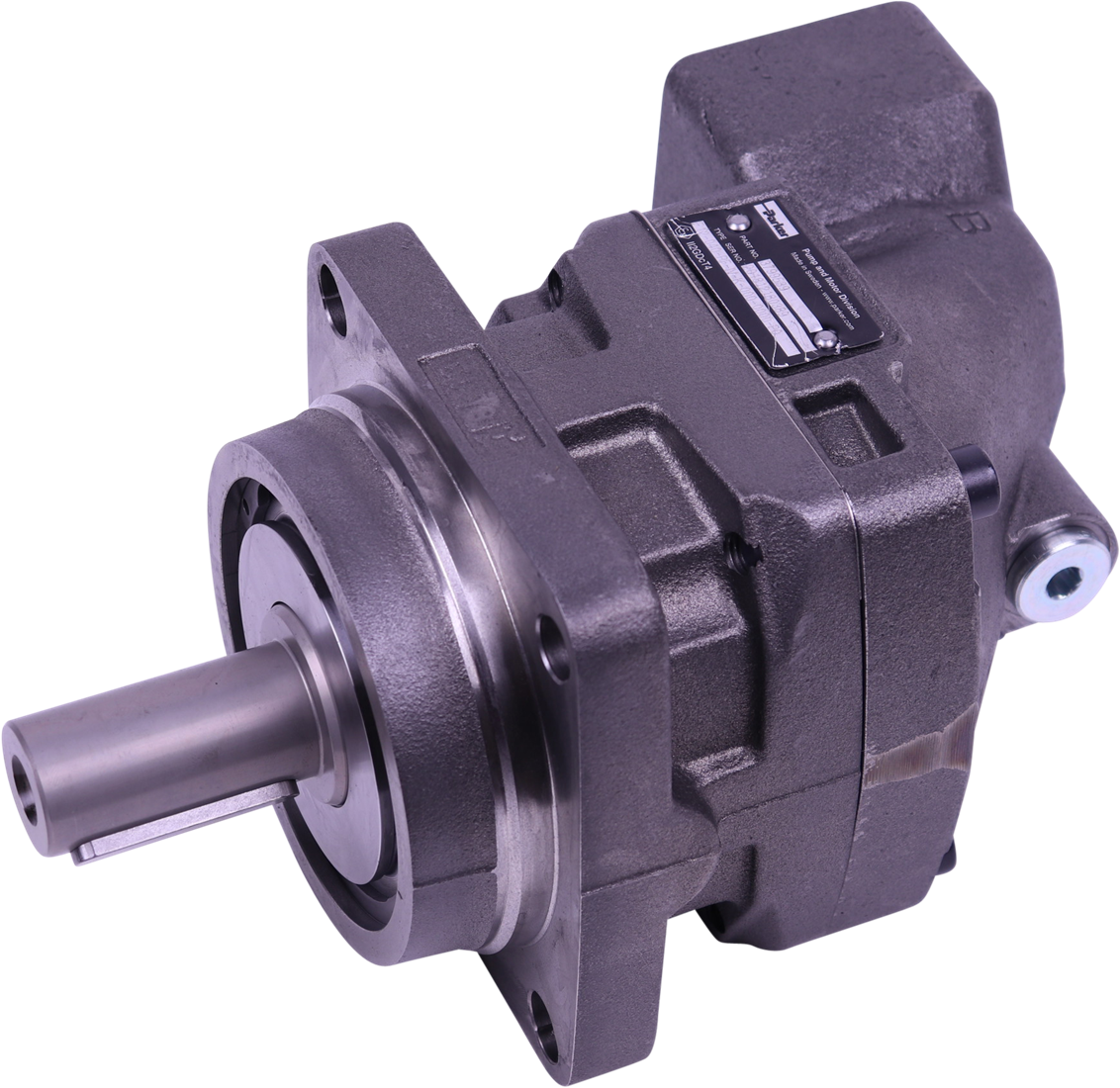

PLUNGER PUMP F12-040-RF-IV-K-000

Artikelcode: 3799539
€ 3.144,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTOR 3/4" MALE - 3/4" MALE

In stock

€ 6,00

Product code: ABM12BM12

MULTI SEAL 3/4"

In stock

€ 2,00

Product code: BSC12

SAE FLANGE 6000 PSI G 3/4" M10 X 20

In stock

€ 42,00

Product code: PFF63GSM

Product description and specifications
Documents
Accessories
Ask a Question

Product description

This plunger pump 3799539 from Parker's F12 series is used in other industries besides trucking. With high operating pressure and speed, this pump is suitable for many applications in both open and closed circuits.

Documents

Datasheet F12 ISO

Mounting instruction F10/F11/F12

Exploded view F12

Specifications

Brand	Parker
Product code	3799539
Displacement	40 cm³/rev
Rotation direction	Clockwise
Flange	113.2 mm, 4 gats
Pump shaft	30mm metrisch
Maximum pressure	420 bar
Maximum rotation speed	2800 rpm
Thread press	Flange with O-ring seal G 3/4"
Volume range	3 - 40 cm³/rev
Suction connection	G 3/4" Flange with O-ring seal
