PLUNGER PUMP EDBRO 17 CC ISO

Artikelcode: EBA17-41
€ 862,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
On order

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTOR 3/4" MALE - 3/4" MALE

In stock

€ 6,00

Product code: ABM12BM12

GASKET 4 HOLE ISO

In stock

€ 6,00

Product code: 50700100086

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO

In stock

€ 18,00

Product code: 11400000900

MULTI SEAL 3/4"

In stock

€ 2,00

Product code: BSC12

Product description and specifications
Documents
Ask a Question

Product description

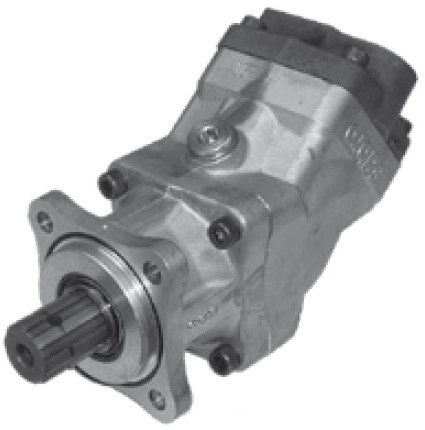

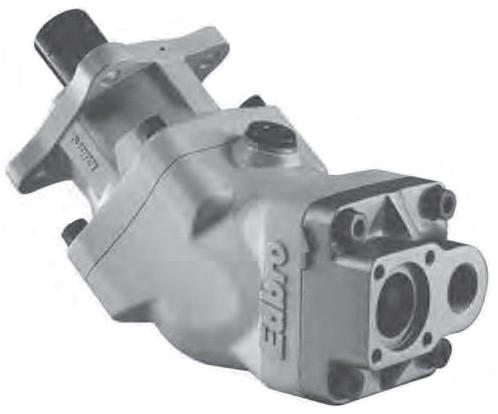

This small plunger pump from Edbro with order code EBA17-41 is a suitable pump for a high-pressure application. The rotation direction is very easy to adjust so that this pump is suitable for both directions of rotation of a PTO. The suction fitting is included with this pump and is suitable for a 38 mm hose.
A pressure nipple with a different thread is possible, check the BSP adapters for a suitable one.
If a higher flow rate or a different connection flange is required, see our piston pumps for an alternative.

Documents

Datasheet EBA-XXX-41

Mounting instruction / Reversing rotating direction EBA

Exploded view EBA-XXX-41

Specifications

Brand	Edbro
Product code	EBA17-41
Displacement	17 cm³/rev
Rotation direction	Clockwise
Flange	ISO 7653 4 holes 80 mm
Pump shaft	DIN 5462 8x32x36
Maximum pressure	400 bar
Maximum rotation speed	2300 rpm
Thread press	G 3/4"
Volume range	3 - 40 cm³/rev
Suction connection	Flange with O-ring seal
