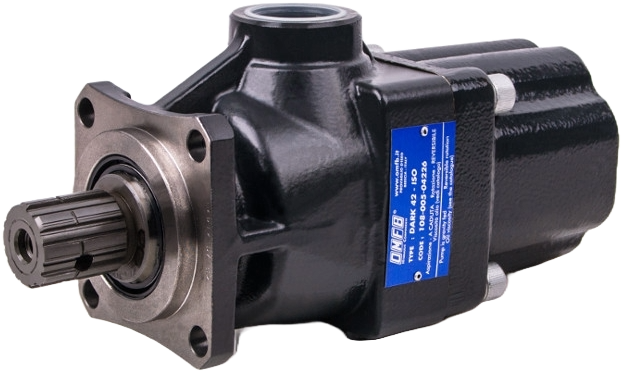

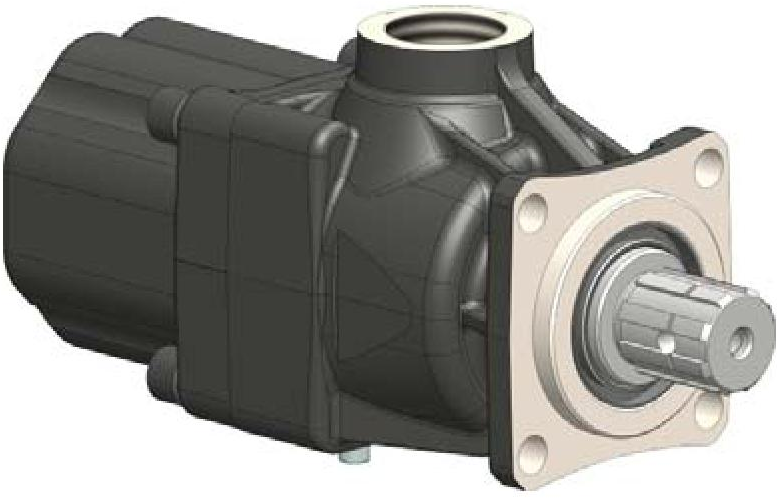

PLUNGER PUMP DARK 42 ISO

Artikelcode: 10800504226
€ 963,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTOR 1" MALE - 1" MALE

In stock

€ 9,00

Product code: ABM16BM16

GASKET 4 HOLE ISO

In stock

€ 6,00

Product code: 50700100086

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO

In stock

€ 18,00

Product code: 11400000900

MULTI SEAL 1"

In stock

€ 2,00

Product code: BSC16

SUCTION FITTING 90° 1 1/4" X 50 MM INCL HOSE CLAMP 60-63 MM

In stock

€ 52,00

Product code: 15510000501

Product description and specifications
Documents
Ask a Question

Product description

This straight OMFB piston pump with order number 10800504226 is widely used in the transport industry.

The suction fitting we recommend can also be replaced by one with a different suction hose diameter, see all our suction fittings that fit this pump.
The pressure nipple with a different thread is also possible, check the BSP adapters for a suitable one.
If more or less flow rate is required, see our piston pumps for an alternative.

Documents

Datasheet DARK ISO

Mounting instruction DARK/2PAK ISO/UNI

Exploded view DARK ISO

Specifications

Brand	OMFB
Product code	10800504226
Displacement	40,5 cm³/rev
Rotation direction	Bidirectional
Flange	ISO 7653 4 holes 80 mm
Pump shaft	DIN 5462 8x32x36
Maximum pressure	350 bar
Maximum rotation speed	1800 rpm
Thread press	G 1"
Volume range	3 - 40 cm³/rev
Suction connection	G 1-1/4"
