PLUNGER PUMP 2PAK 50+50 ISO

Artikelcode: 10800850503
€ 1.812,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

ADAPTOR 1/2" MALE - 1/2" MALE

In stock

€ 3,00

Product code: ABM08BM08

GASKET 4 HOLE ISO

In stock

€ 6,00

Product code: 50700100086

MOUNTING KIT 4 HOLE PUMP - 4 HOLE PTO

In stock

€ 18,00

Product code: 11400000900

MULTI SEAL 1/2"

In stock

€ 2,00

Product code: BSC08

SUCTION FITTING 45° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM

In stock

€ 52,00

Product code: 15509000540

Product description and specifications
Documents
Ask a Question

Product description

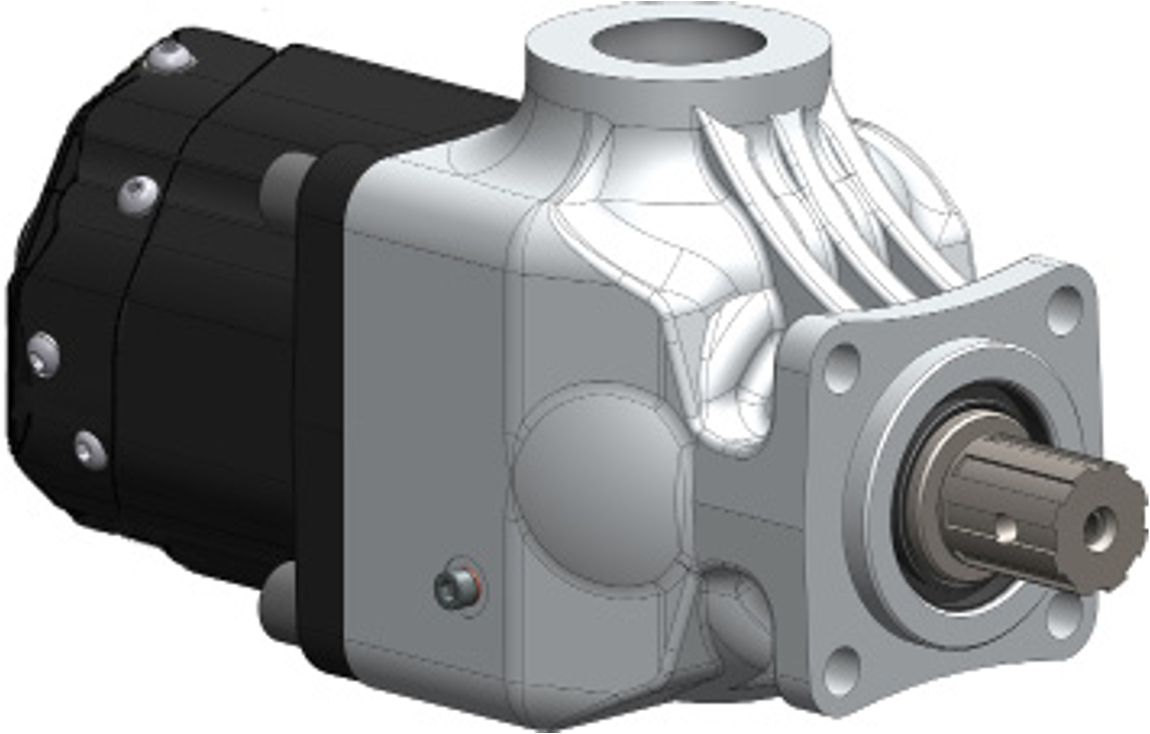

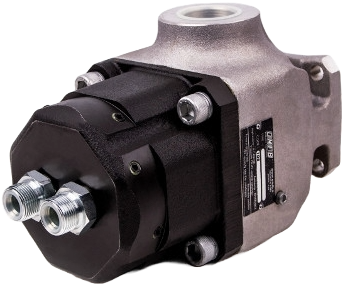

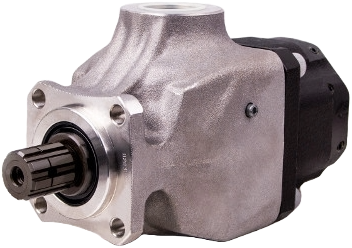

This double plunger pump from OMFB's 2PAK series has 2 oil outputs of 50 cc each.
The pump is fitted with an ISO 7653 4-hole flange and a DIN 5462 8x32x36 shaft.
With a bi-directional rotation direction, this pump offers versatility, making it perfect for various applications.
With a maximum working pressure of 300 bar, the 2PAK pump guarantees powerful hydraulic pressure..

We have many alternatives available for the suction fittings, you can also find a suitable one for the fitting to the nipple on the press among the BSP adapters.

Documents

Datasheet 2PAK Twin Delivery

Mounting instruction DARK/2PAK ISO/UNI

Exploded view 2PAK Twin Delivery

Specifications

Brand	OMFB
Product code	10800850503
Displacement	50-50 cm³/rev
Rotation direction	Bidirectional
Flange	ISO 7653 4 holes 80 mm
Pump shaft	DIN 5462 8x32x36
Maximum pressure	300 bar
Maximum rotation speed	1500 rpm
Thread press	G1/2" + G1/2"
Volume range	41 - 79 cm³/rev
Suction connection	G 1-1/2"
