MULTIFASTER P510 1 X 1/2" 2 X 3/4" F

Artikelcode: 2P510-3-A F C
€ 517,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
Available from stock

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

MULTIFASTER P510 1 X 1/2" 2 X 3/4" M

In stock

€ 305,00

Product code: 2P510-3-A M C

Product description and specifications
Documents
Accessories
Ask a Question

Product description

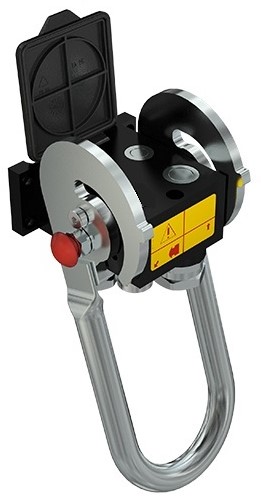

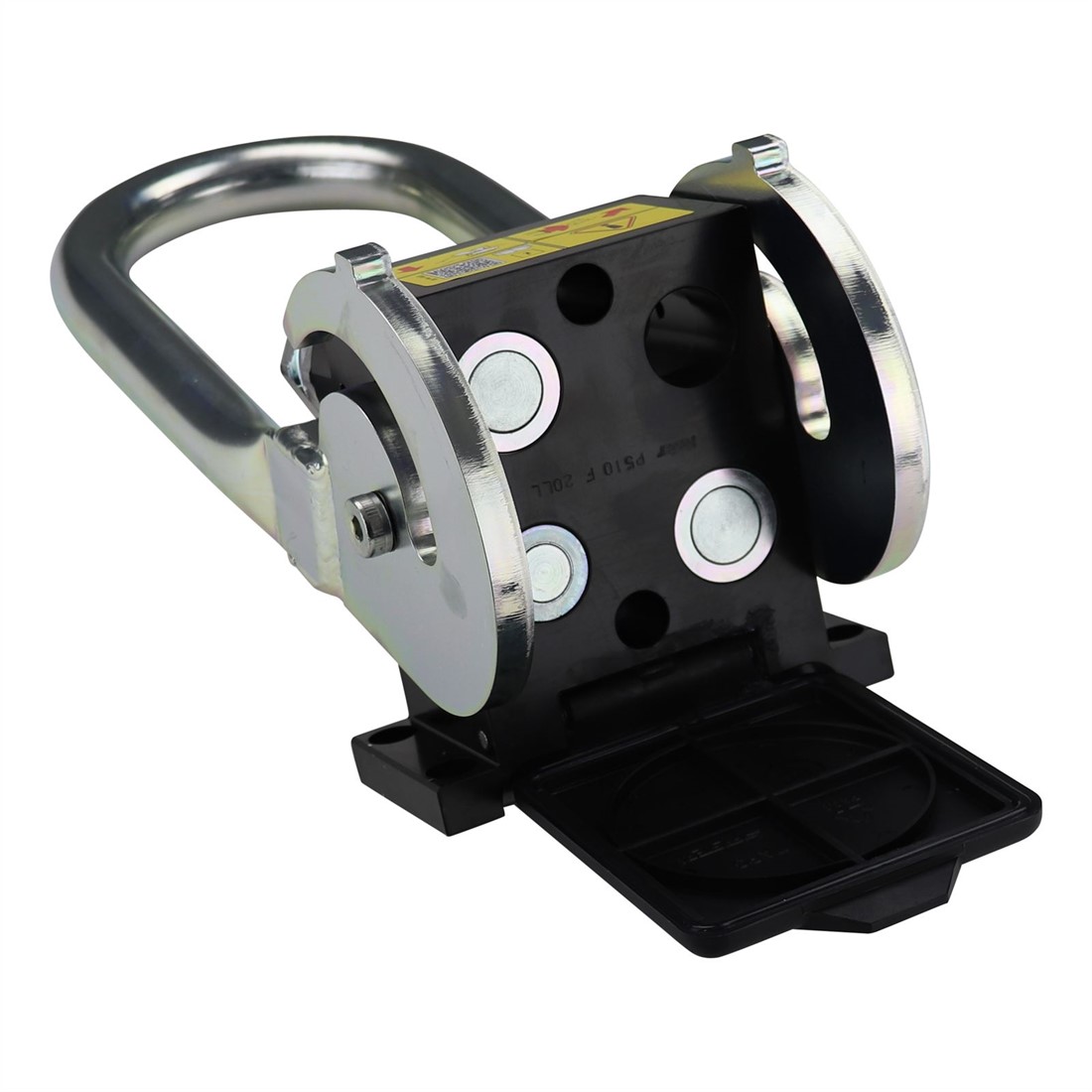

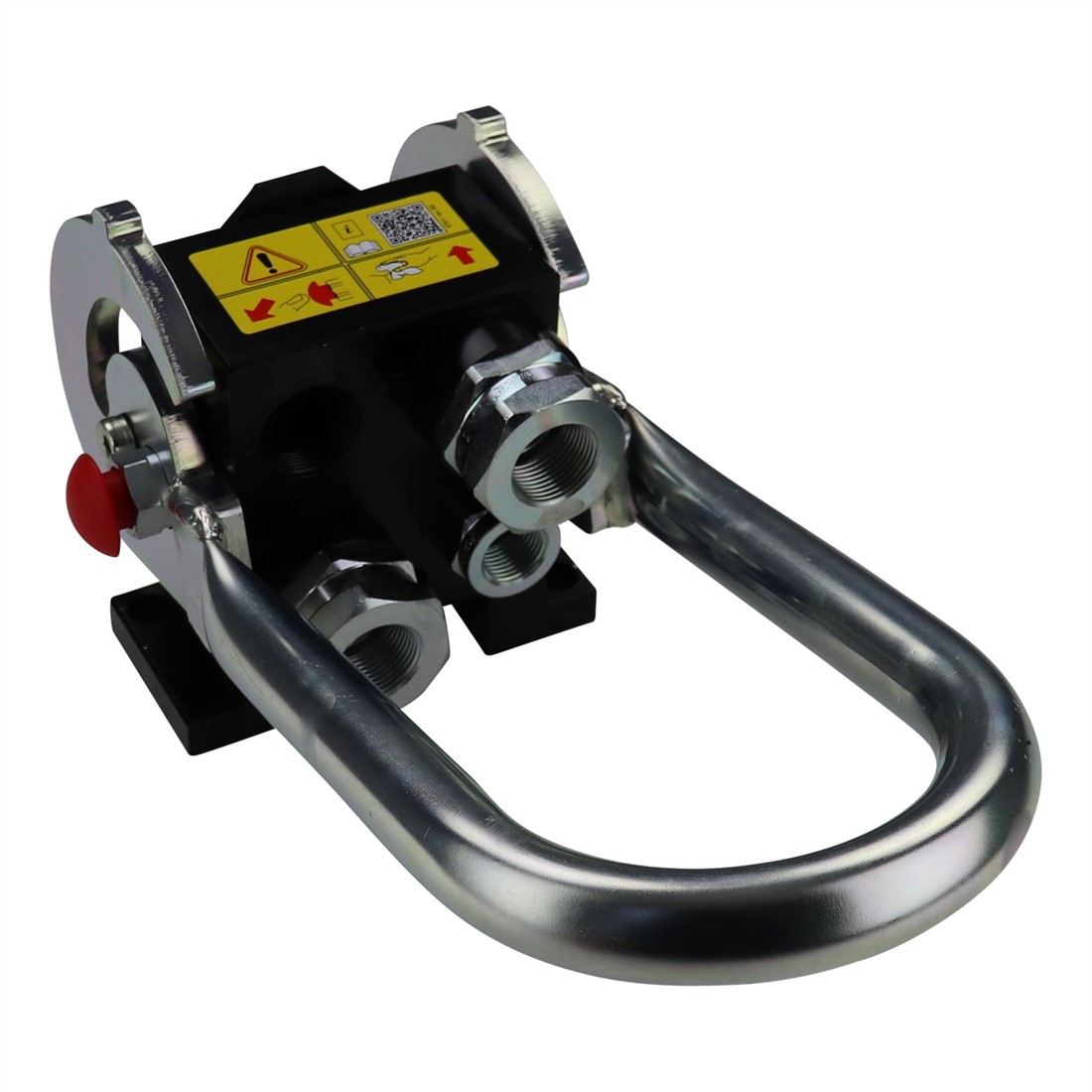

MultiFaster P510 with 1 coupling body size 1/2" and 2 couplings body size 3/4" - female thread BSPP 3/4" (ISO 1179-1). This is the female, fixed part.
This MultiFaster P510 coupling makes it possible to connect several hoses with one hand, even if there is residual pressure in the system. Swapping hoses is no longer possible, air entrapment during connection and disconnection of hoses or fluid leakage are a thing of the past.

Documents

Datasheet MultiFaster P510

Specifications

Brand	Faster
Product code	2P510-3-A F C
Quick coupling type	Multiple Flat face
Number of couplings	3
Type	MultiFaster P510
Body size	1/2" 3/4"
Thread	1/2" BSPP 3/4" BSPP
Material	Aluminium Steel
Seals	NBR & PUR
Connection under pressure	Allowed (residual)
Flow rate (at 2 bar)	70 & 105 L/min
Working pressure	250 bar
