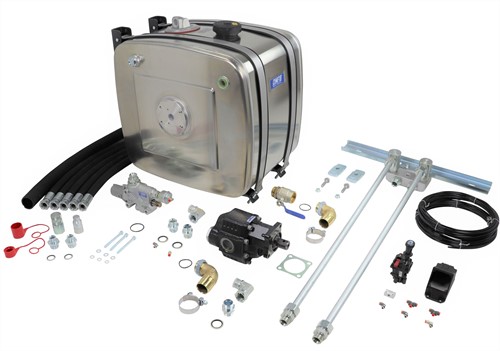

TKC-03 Hydraulic kit for tipper or moving floor trailer, standard consisting of:
- Two hose system, tipper hose/pressure hose sliding floor and return hose sliding floor
- Gear pump 116 CC at 250 bar
- Aluminium hydraulic tank 520 x 680 x 620 (LxWxH) capacity 200 litres with return filter
- Tipper valve switchable between tipper and moving floor, mounted on left-hand side of hydraulic tank
- Cabin controls for tipping and lowering and moving floor mounted on support left of driver's seat
- Swivel arms including hydraulic hoses mounted in front of the fifth wheel plate
- Including leakproof flat-face quick-release couplings
Notes:
- PTO must be present on vehicle
- Minimum 650 mm free space on chassis
- Only 4x2 chassis
- No sliding fifth wheel
If there are any specific requirements regarding this set, e.g. a larger/smaller tank or a different (type of) pump, please contact us.
