HYDRAULIC TANK ALUMINIUM 180 LTR 625680500 WITH STEP + SUPPORT SET DAF CF/XF

Artikelcode: H2ALBQ05022
€ 2.284,00 Processing... Ask for quotationAdd to wish list
Product Data Sheet
On order

Add to favorites

Easy online ordering and payment
Scroll down for more information
We only supply excellent brands
Ask for our shipment arrangements
Need more info? Ask us below

Related products

BALL VALVE ADJUSTABLE 1" 1/2 M/F

In stock

€ 67,00

Product code: 12600600409

SUCTION FITTING 90° 1 1/2" X 50 MM INCL HOSE CLAMP 60-63 MM

In stock

€ 55,00

Product code: 15510000592

Product description and specifications
Documents
Accessories
Ask a Question

Product description

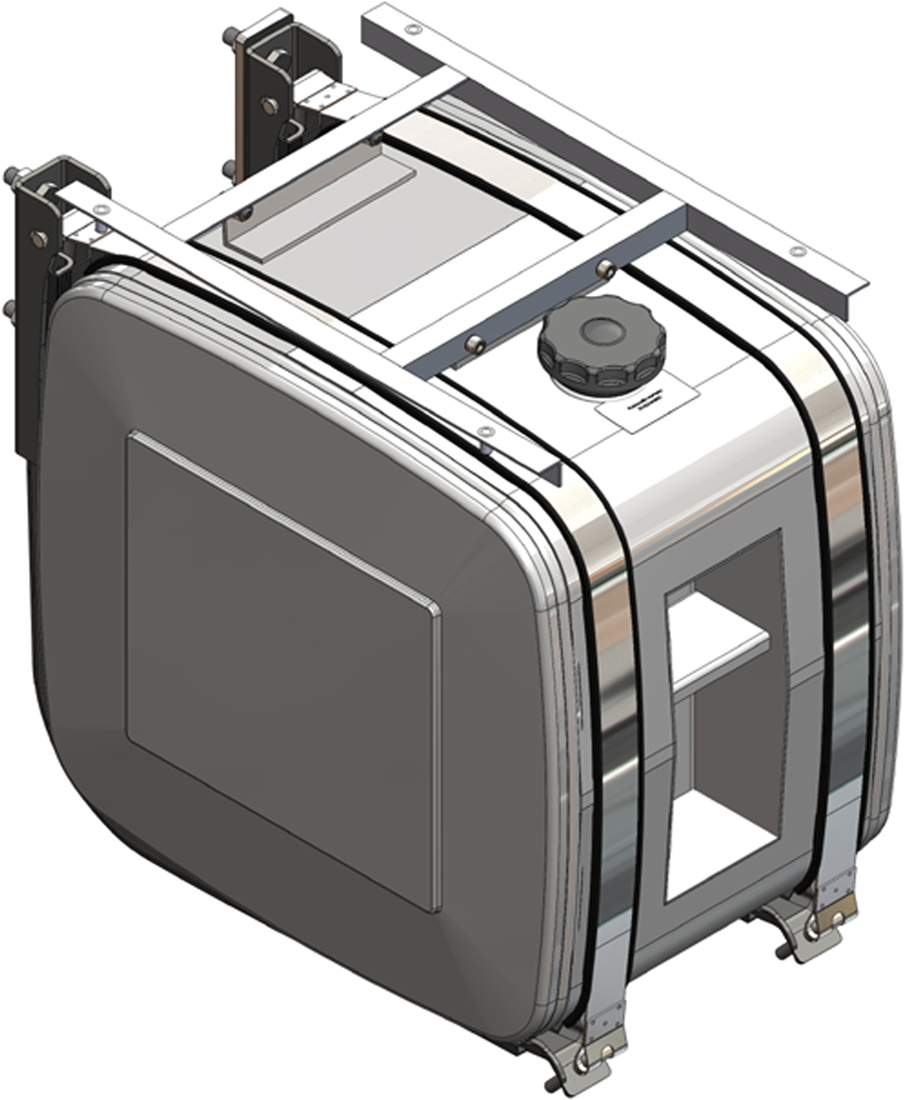

Aluminum hydraulic tank specially designed for the DAF CF and XF (old model). This tank from OMFB has a capacity of 180 liters. The tank is standard equipped with a step to climb behind the cab, a 1" 1/2 female thread suction connection, a 1" return connection and a low model filler cap with venting and anti-splash function. Also, the tank is equipped with a gauge eye 1".

By installing this tank, the demand for a hydraulic tank with significant capacity can be met while retaining the original fuel tank and both the spare wheel (or additional fuel tank).

Documents

Datasheet BQ 625x680 DAF

Mounting instruction

Specifications

	Brand	OMFB
	Product code	H2ALBQ05022
	Tank capacity	180 litre
	Work volume hydraulic	150 litre
	Material	Aluminium
	Mounting plate tipping valve	None
	Support set included	Yes
	Filter hole	No
	Level indicator/Spy eye	Spy eye 1 "

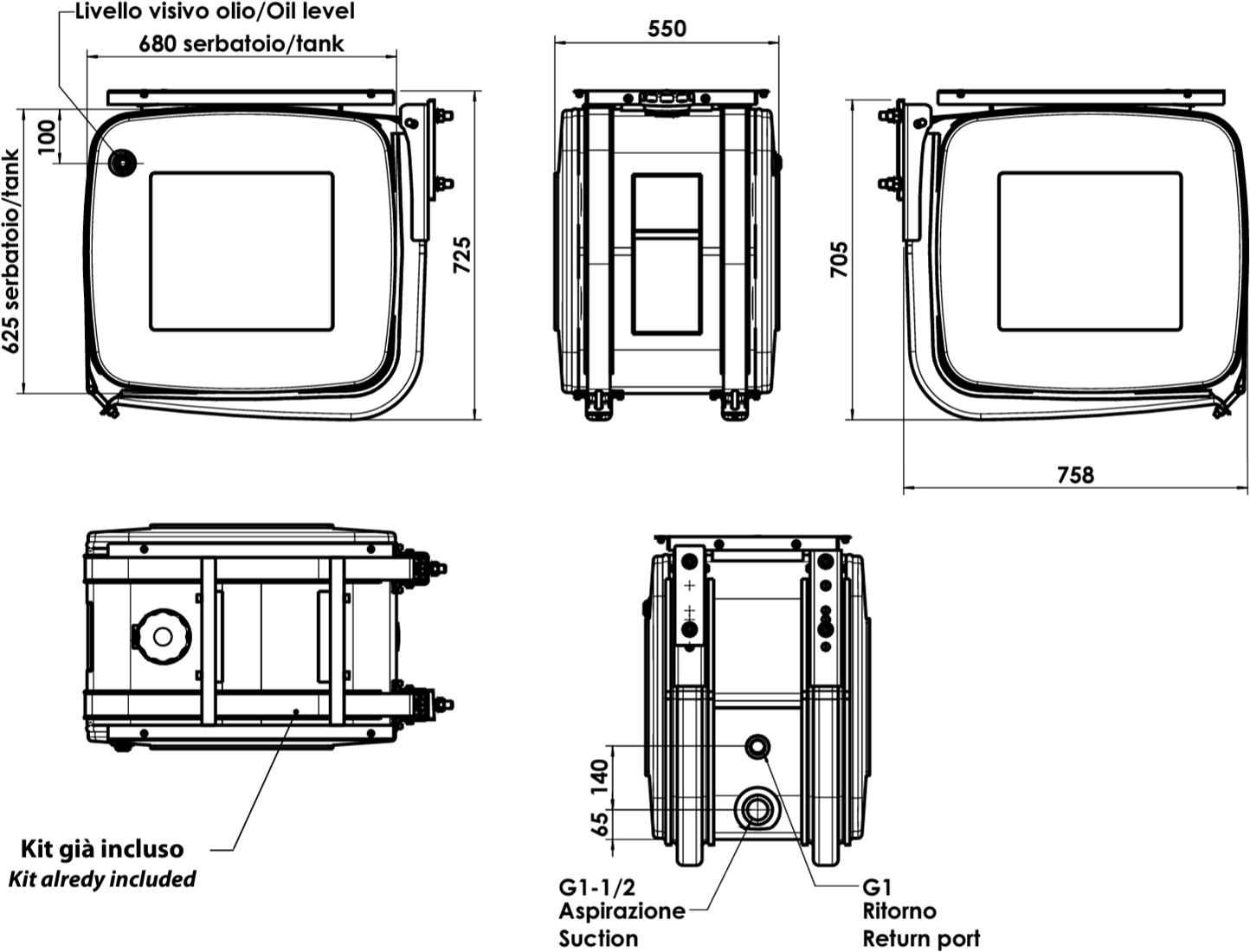

Height	Height	625 mm
Width	Width	680 mm
	Suction connection	G 1-1/2"
Length	Length	500 mm
	Return connection	G1"
	Number of return connections	1
