Product description

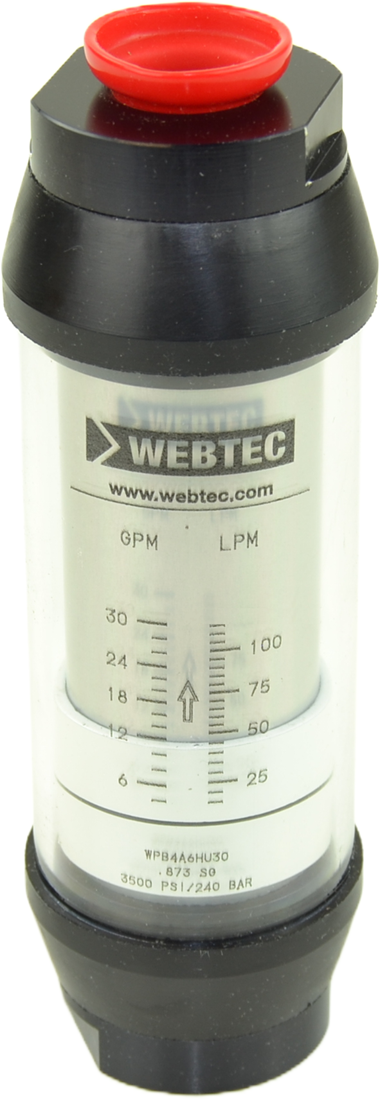

The WPB series in-line flow monitors are designed for continuous monitoring or intermittent use for trouble-shooting or commissioning industrial or mobile hydraulic systems. The tubular scale is easily read through the clear polycarbonate window and ensures checks can be made to determine pump performance and setting of flow control valves. The unit is fully sealed for weather tight or wash down applications.
An optional Pyrex safety glass window is available. Wetted seals are available in Buna (standard), Viton®, EPR or Kalrez®, so compatibility with hydraulic fluids in mobile, industrial or other applications such as lubrication or coolant systems is not a problem. The WPB series flow monitors do not require straight inlet or outlet piping or require vertical installation.
The advanced design of the sharp edged orifice ensures good reliability over a wide viscosity range and minimises the effect of contamination. Accuracy is 2.5% over the centre third of the scale and 4% over the entire flow range.
