Product description

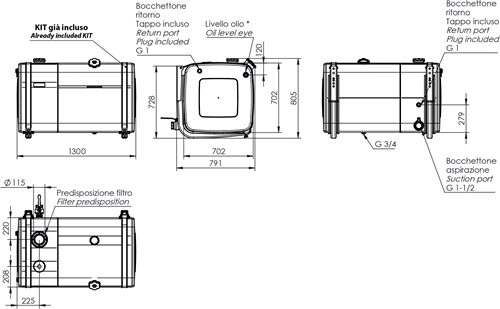

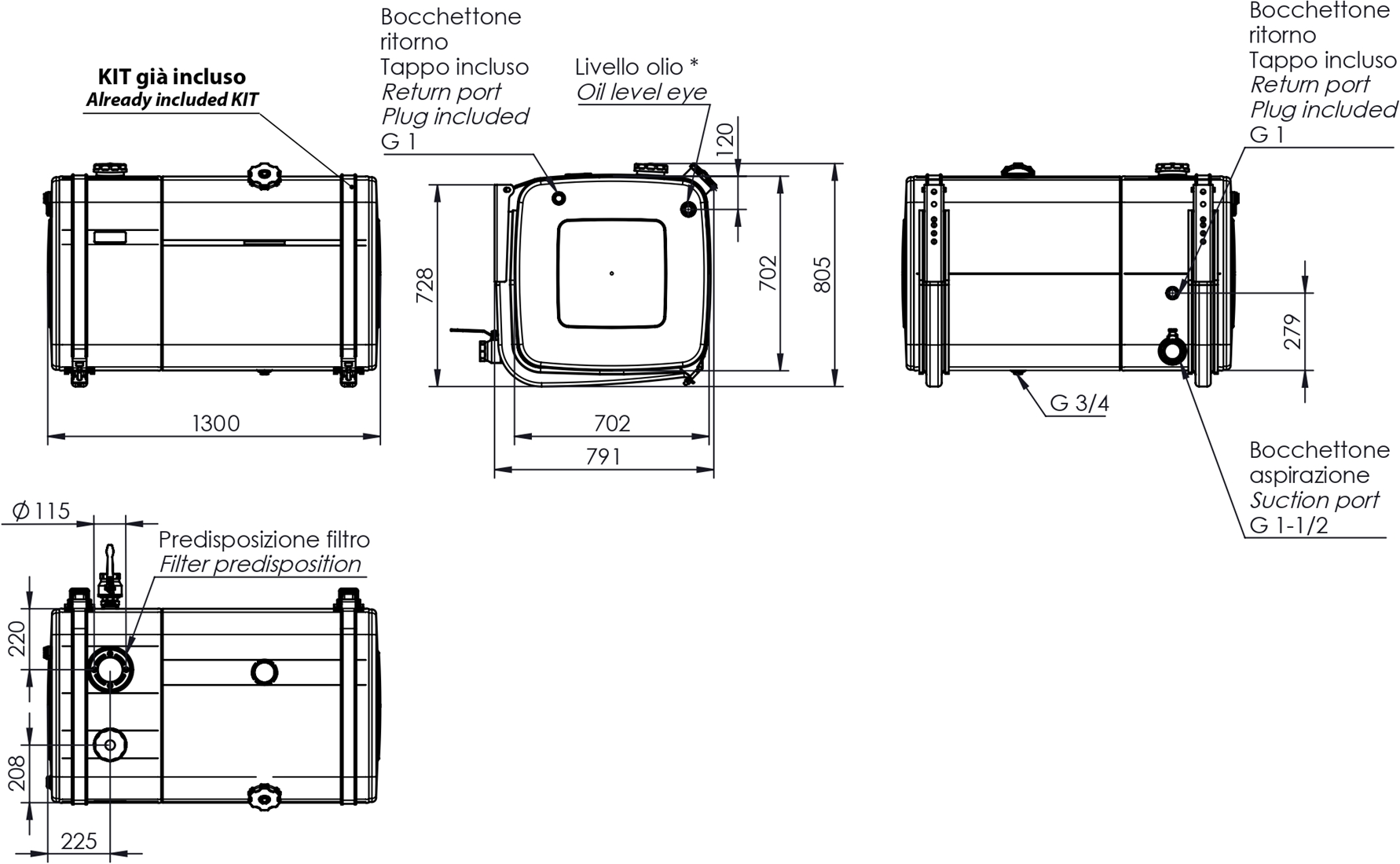

Padoan Multi Function 70/70 combined tank for hydraulic and diesel oil with a total capacity of 600 litres (400 litres diesel + 200 litres hydraulic oil).
The hydraulic section is fitted with a 1" 1/2 female thread suction connection with a 1" 1/4 return connection above it. On the side of the hydraulic section is another 1" return connection with a standpipe to below the oil level and a 1" level eye. In addition, there is the possibility of fitting a return filter at the top of the tank.
The fuel section has a (VDO) bayonet connection on top for a diesel level indicator/standpipe and at the bottom there is a 3/4" drain plug which can also be used to connect the tank to an existing tank on the vehicle.
Included are a low model air breather cap with anti-splash function for the hydraulic section, a lockable fuel cap with vent for the diesel section and tank supports for mounting the tank to the chassis. (Optionally, the tank can also be ordered without tank supports).
The above basic technical equipment guarantees great flexibility of use and remarkable ease of installation.
